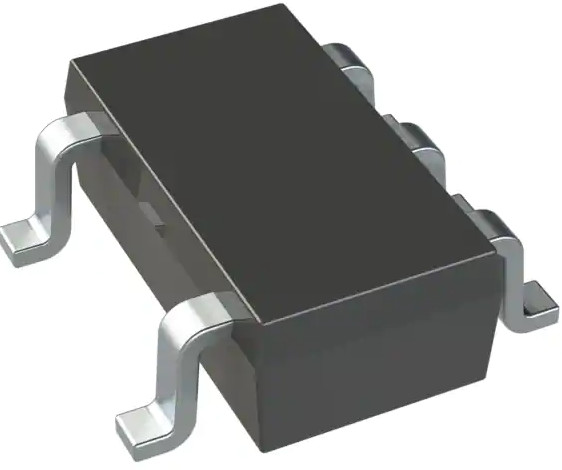

ZXCT1010E5TA Current Monitor Regulator High-Side 10mA SOT-23-5
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | ZXCT1010E5TA |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 3000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ZXCT1010E5TA | Voltage - Input | 2.5V ~ 20V |
|---|---|---|---|
| Current - Output | 10mA | Package / Case | SC-74A, SOT-753 |
Product Description
ZXCT1010E5TA Current Monitor Regulator High-Side 10mA SOT-23-5
Description
The ZXCT1010 is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It is an enhanced version of the ZXCT1009 offering reduced typical output offset and improved accuracy at low sense voltage. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of just 4µA, combined with its SOT25 package make suitable for portable battery equipment.
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Current Regulation/Management
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Function
|
Current Monitor
|
|
Sensing Method
|
High-Side
|
|
Accuracy
|
±1%
|
|
Voltage - Input
|
2.5V ~ 20V
|
|
Current - Output
|
10mA
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
Features
• Low cost, accurate high-side current sensing
• Output voltage scaling
• Up to 2.5V sense voltage
• 2.5V to 20V supply voltage range
• 300nA typical offset current
• 3.5µA quiescent current
• 1% typical accuracy
• SOT25 package
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
Pin Assignments
Applications
• Battery chargers
• Smart battery packs
• DC motor control
• Over current monitor
• Power management
• Programmable current source
