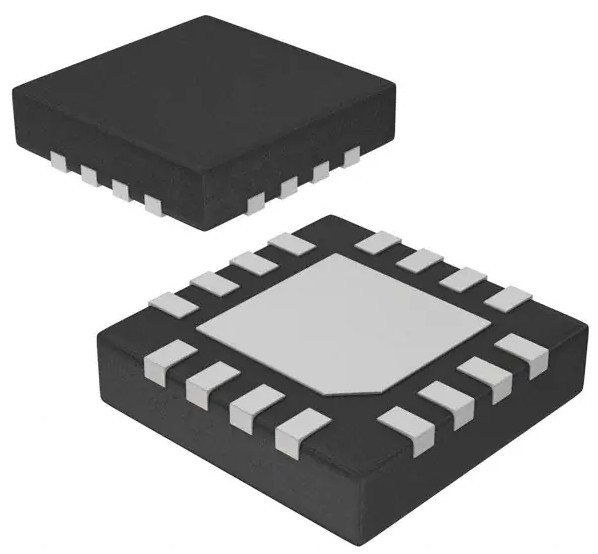

PAM8904QJER Integrated Chip Piezo Sounder Driver U-QFN3030-16 Surface Mount

PAM8904QJER Piezo Sounder Driver U-QFN3030-16 (Type B) Surface Mount

Description

The PAM8904Q is a piezo sounder driver designed for driving a ceramic/piezo sounder or speaker with 18VPP from a 3V power supply. A programmable charge pump boost converter allows the PAM8904Q VOUT to operate in 1x, 2x and 3x mode.

The boost converter operates at a fixed frequency of 1.0MHz and provides a 9V output with a minimum number of external components. PAMs unique drive technology ensures minimal inrush current, low EMI and high efficiency.

To ensure maximum efficiency and battery life, the PAM8904Q includes an auto standby feature which puts the device in sleep mode while there is no valid input signal. A forced shutdown is also available to enable the IC only when required.

To help protect the IC and system, the PAM8904Q includes overtemperature shutdown, overcurrent and short circuit protection.

The PAM8904Q is available in a 16 pin U-QFN3030-16 (Type B) package.

The PAM8904Q is qualified to AEC-Q100 Grade 2 and is Automotive Compliant supporting PPAPs.

Features

 Supply Voltage Range from 2.3V to 5V

 18VPP Output from a 3V Supply

 Integrated Boost Converter Generates 9V Supply

 Wide Input Signal Capability 20Hz to 300kHz

 Low Current Consumption

 Automatic Standby and Wake-up Control

 Overtemperature Shutdown and Short-Circuit Protection

 Available in Space Saving Packages 16 pin U-QFN3030-16 (Type B) Package with Green Molding

 Totally Lead-Free & Fully RoHS Compliant

 Halogen and Antimony Free. “Green” Device

 The PAM8904Q is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.

Pin Assignments

Applications

 Automotive Alarms

 Dash Board Audio

 GPS

 Electric Vehicle Approach Warning

 Automotive Security Device

Typical Applications Circuit

1 CPM1 I Charge pump mode select 1

2 CPM2 I Charge pump mode select 2

3 DIN I Signal Input

4 NC — No Connection

5 CN1 I Capacitor 1 Negative Terminal

6 GND P Ground

7 VO2 O Positive Output

8 NC — No Connection

9 VO1 O Negative Output

10 CN2 I Capacitor 2 Negative Terminal

11 CP1 I Capacitor 1 Positive Terminal

12 NC — No Connection

13 VOUT O Boost Output

14 CP2 I Capacitor 2 Positive Terminal

15 VIN P Power Supply

16 NC — No Connect

PAD GND P Recommended to connect to GND or No Connection
