Place of Origin	USA
Brand Name	Texas Instruments
Certification	RoHS
Model Number	THVD1500DR
Minimum Order Quantity	2500
Price	negotiate
Packaging Details	Reel
Delivery Time	5-8 work days
Payment Terms	T/T
Supply Ability	120000

Product Name	THVD1500DR	Voltage - Supply	4.5V ~ 5.5V
Receiver Hysteresis	50 MV	Protocol	RS485
Number Of Drivers/Receivers	1/1	Duplex	Half
Data Rate	300kbps	Package / Case	8-SOIC (0.154", 3.90mm Width)
High Light	Surface Mount THVD1500DR , THVD1500DR 1/1 Transceiver , Half Ic Chips RS485 8-SOIC 50 MV

Category	Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers
Mfr	Texas Instruments
Type	Transceiver
Protocol	RS485
Number of Drivers/Receivers	1/1
Duplex	Half
Receiver Hysteresis	50 mV
Data Rate	300kbps
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount

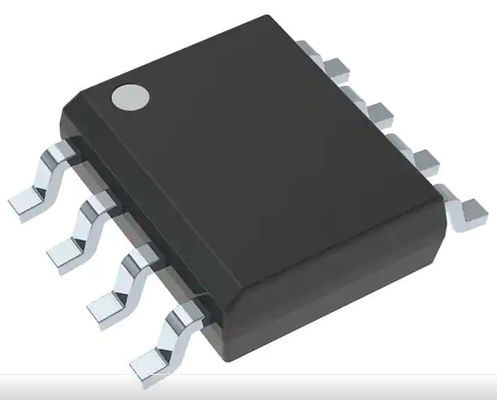

Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Surface Mount THVD1500DR 1/1 Transceiver Half Ic Chips RS485 8-SOIC 50 MV

Surface Mount THVD1500DR

THVD1500DR 1/1 Transceiver

Half Ic Chips RS485 8-SOIC 50 MV

THVD1500DR 1/1 Transceiver Half RS485 8-SOIC 50 MV 4.5V ~ 5.5V Surface Mount

Features

• Meets or Exceeds the Requirements of the TIA/EIA-485A Standard and the State Grid Corporation of China (SGCC) Part 11 Serial Communication Protocol RS-485 Standard

• 4.5 V to 5.5 V Supply Voltage

• Half-Duplex RS-422/RS-485

• Bus I/O Protection

– ± 16 kV HBM ESD

– ± 8 kV IEC 61000-4-2 Contact Discharge

– ± 10 kV IEC 61000-4-2 Air Gap Discharge

– ± 2 kV IEC 61000-4-4 Fast Transient Burst

• Extended Industrial Temperature Range: -40°C to 125°C

• Large Receiver Hysteresis for Noise Rejection

• Low Power Consumption

– Low Standby Supply Current: < 1 µA

– Quiescent During Operation: < 660 µA

• Glitch-Free Power-Up/Down for Hot Plug-in Capability

• Open, Short, and Idle Bus Failsafe

• 1/8 Unit Load Options (Up to 256 Bus Nodes)

• Low EMI 500 kbps

Applications

• Electricity Meters (E-Meters)

• Inverters

• HVAC Systems

• Video Surveillance Systems

Description

THVD1500 is a robust half-duplex RS-485 transceiver for industrial applications. The bus pins are immune to high levels of IEC Contact Discharge ESD events eliminating need of additional system level protection components.

The device operates from a single 5-V supply. The wide common-mode voltage range and low input leakage on bus pins make THVD1500 suitable for multi-point applications over long cable runs.

THVD1500 is available in industry standard 8-pin SOIC package for drop-in compatibility. The device is characterized from –40°C to 125°C.

R 1 Digital output Receive data output

RE 2 Digital input Receiver enable, active low (internal 2-MΩ pull-up)

DE 3 Digital input Driver enable, active high (internal 2-MΩ pull-down)

D 4 Digital input Driver data input

GND 5 Ground Local device ground

A 6 Bus input/output Bus I/O port, A (complementary to B)

B 7 Bus input/output Bus I/O port, B (complementary to A)

VCC 8 Power 5-V supply
