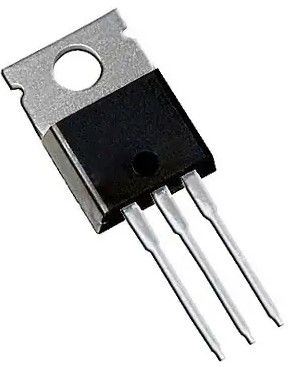

P Channel IRF9540NPBF Circuit Chips 100 V 23A (Tc) 140W (Tc) Through Hole TO-220AB

  • P Channel IRF9540NPBF Circuit Chips 100 V 23A (Tc) 140W (Tc) Through Hole TO-220AB
  • P Channel IRF9540NPBF Circuit Chips 100 V 23A (Tc) 140W (Tc) Through Hole TO-220AB
  • P Channel IRF9540NPBF Circuit Chips 100 V 23A (Tc) 140W (Tc) Through Hole TO-220AB
Place of Origin USA
Brand Name Infineon Technologies
Certification RoHS
Model Number IRF9540NPBF
Minimum Order Quantity 1000
Price negotiate
Packaging Details Tube
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 2000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IRF9540NPBF Vgs(th) (Max) Id 4V 250µA
Gate Charge (Qg) (Max) Vgs 97 NC 10 V Vgs (Max) ±20V
Rds On (Max) Id, Vgs 117mOhm 11A, 10V Supplier Device Package TO-220AB
High Light

P Channel IRF9540NPBF

,

IRF9540NPBF Through Hole

,

Circuit Chips 100 V TO-220AB
Leave a Message
Product Description

IRF9540NPBF P-Channel 100 V 23A (Tc) 140W (Tc) Through Hole TO-220AB

Fifth Generation HEXFETS from Intemational Rectifieutilize advanced processing techniques to achieveextremely low on-resistance per silicon area. Thisbenefit, combined with the fast switching speed andruggedized device design that HEXFET PowerMOSFETS are well known for, provides the designerwith an extremely efficient and reliable device for usein a wide vanety of applications.

The TO-220 package is universally preferred for allcommercialindustrial applications at power dissipationlevels to approximately 50 watts. The low thermalresistance and low package cost of the TO-220contribute to its wide acceptance throughout theindustry.



Specification of IRF9540NPBF

Mfr
Infineon Technologies
Series
HEXFET
Product Status
Active
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id)  25°C
23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max)  Id, Vgs
117mOhm  11A, 10V
Vgs(th) (Max)  Id
4V  250µA
Gate Charge (Qg) (Max)  Vgs
97 nC  10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max)  Vds
1300 pF  25 V
FET Feature
-
Power Dissipation (Max)
140W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-220AB
Package / Case
TO-220-3



ORIGINAL



Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.



PRICE



We provide a variety of quotation channels, and sign the order contract after negotiation.



TRANSACTION



After communication and agreement, we will guide you to arrange payment.



DELIVERY CYCLE



Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.



TRANSPORT



We will choose the appropriate transportation mode according to your country.



PACKAGING



After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
