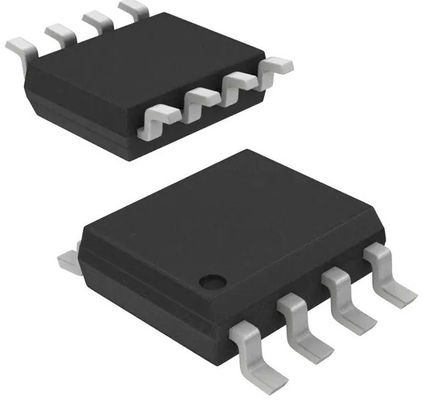

DMN4800LSSQ-13 N-Channel 30 V 8.6A (Ta) 1.46W (Ta) Surface Mount 8-SO
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | DMN4800LSSQ-13 |
| Minimum Order Quantity | 2500 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 7500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DMN4800LSSQ-13 | Drain To Source Voltage (Vdss) | 30 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 8.6A (Ta) | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 9A, 10V | Power Dissipation (Max) | 1.46W (Ta) |
Product Description
DMN4800LSSQ-13 N-Channel 30 V 8.6A (Ta) 1.46W (Ta) Surface Mount 8-SO
Description
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
Backlighting
Power Management Functions
DC-DC Converters
Features
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram
Terminals: Finish - Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.072g (Approximate)
|
Category
|
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
Automotive, AEC-Q101
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
8.6A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
14mOhm @ 9A, 10V
|
|
Vgs(th) (Max) @ Id
|
1.6V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
8.7 nC @ 5 V
|
|
Vgs (Max)
|
±25V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
798 pF @ 10 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
1.46W (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
8-SO
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
