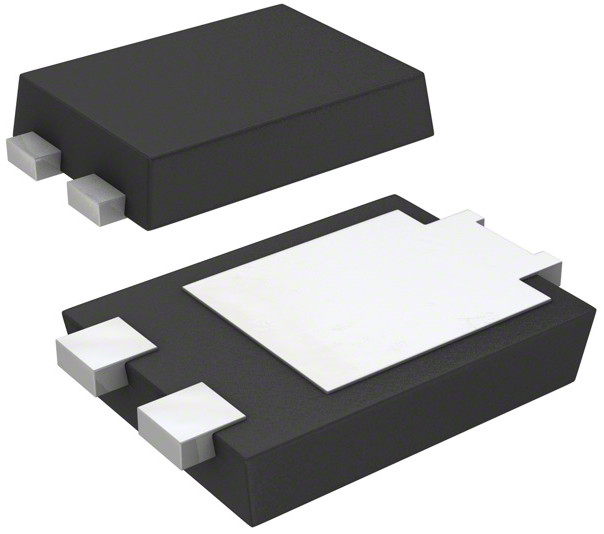

SDT10A100P5-13 Diode Schottky 100 V 10A Surface Mount PowerDI 5
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SDT10A100P5-13 |
| Minimum Order Quantity | 5000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 5000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SDT10A100P5-13 | Voltage - DC Reverse (Vr) (Max) | 100 V |
|---|---|---|---|
| Current - Average Rectified (Io) | 10A | Voltage - Forward (Vf) (Max) @ If | 680 MV @ 10 A |
Product Description
SDT10A100P5-13 Diode Schottky 100 V 10A Surface Mount PowerDI 5
Description and Applications
Packaged in the compact thermally efficient PowerDI® 5, the SDT10A100P5 provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
DC-DC Converters
AC-DC Adaptors
Features and Benefits
Low Forward Voltage Drop
Excellent High Temperature Stability
Soft, Fast Switching Capability
+150°C Operating Junction Temperature
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data
Case: PowerDI5
Case Material: Molded Plastic, ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram Below
Weight: 0.093 grams (Approximate)
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Diode Type
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
10A
|
|
Voltage - Forward (Vf) (Max) @ If
|
680 mV @ 10 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Current - Reverse Leakage @ Vr
|
100 µA @ 100 V
|
|
Capacitance @ Vr, F
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
PowerDI™ 5
|
|
Supplier Device Package
|
PowerDI™ 5
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
