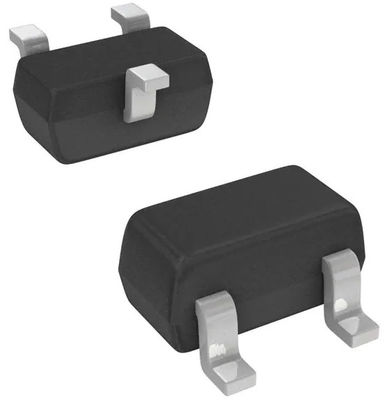

DMG1012UW-7 N-Channel 20 V 1A (Ta) 290mW (Ta) Surface Mount SOT-323
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | DMG1012UW-7 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 15000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DMG1012UW-7 | Drain To Source Voltage (Vdss) | 20 V |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Rds On (Max) @ Id, Vgs | 450mOhm @ 600mA, 4.5V |
Product Description
DMG1012UW-7 N-Channel 20 V 1A (Ta) 290mW (Ta) Surface Mount SOT-323
Features
• Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Output Leakage
• ESD Protected Up To 2kV
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• For automotive applications requiring specific change control
Mechanical Data
• Case: SOT323
• Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram Below
• Terminals: Finish ⎯ Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208
• Weight: 0.006 grams (Approximate)
|
Category
|
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
20 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
1A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
1.8V, 4.5V
|
|
Rds On (Max) @ Id, Vgs
|
450mOhm @ 600mA, 4.5V
|
|
Vgs(th) (Max) @ Id
|
1V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
0.74 nC @ 4.5 V
|
|
Vgs (Max)
|
±6V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
60.67 pF @ 16 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
290mW (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-323
|
|
Package / Case
|
SC-70, SOT-323
|
