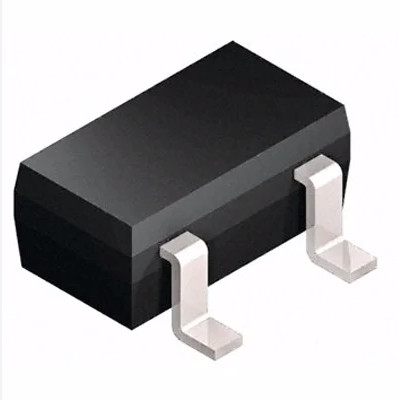

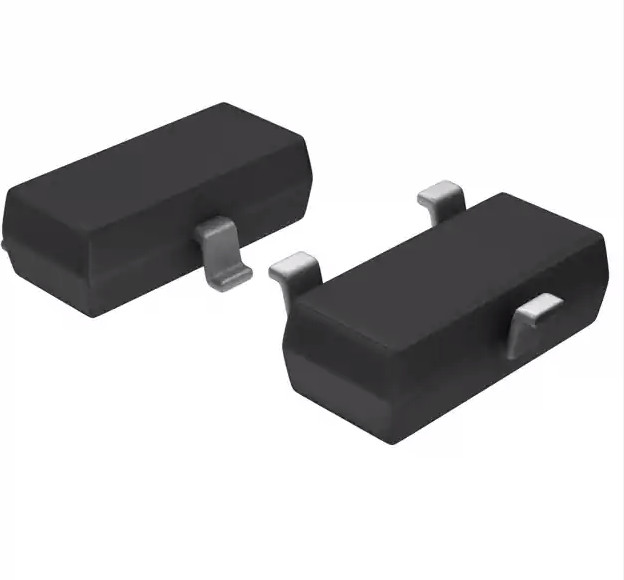

ZXCT1009FTA Current Monitor Regulator High-Side 9.98mA SOT-23-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | ZXCT1009FTA |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-7work days |
| Payment Terms | T/T |
| Supply Ability | 3000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ZXCT1009FTA | Voltage - Input | 2.5V ~ 20V |
|---|---|---|---|
| Current - Output | 9.98mA | Package / Case | TO-236-3, SC-59, SOT-23-3 |
Product Description
ZXCT1009FTA Current Monitor Regulator High-Side 9.98mA SOT-23-3
Description
The ZXCT1009 is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It takes a high side voltage developed across a current shunt resistor and translates it into a proportional output current. A user defined output resistor scales the output current into a ground-referenced voltage. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of just 4µA, combined with a SOT23 package make it a unique solution for portable battery equipment. The SM8 device offers an alternative package option.
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Current Regulation/Management
|
|
Mfr
|
Diodes Incorporated
|
|
Function
|
Current Monitor
|
|
Sensing Method
|
High-Side
|
|
Accuracy
|
±1%
|
|
Voltage - Input
|
2.5V ~ 20V
|
|
Current - Output
|
9.98mA
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
Features
• Low cost, accurate high-side current sensing
• Output voltage scaling
• Up to 2.5V sense voltage
• 2.5V to 20V supply range
• 4μA quiescent current
• 1% typical accuracy
• SOT23 and SM8 packages
• AEC-Q100.3 qualified; ZXCT1009FTA only
Applications
• Battery chargers
• Smart battery packs
• DC motor control
• Over current monitor
• Power management
• Level translating
• Programmable current source
Application Circuit
