DMP6050SFG-13 P-Channel 60 V 4.8A (Ta) 1.1W (Ta) Surface Mount PowerDI3333-8
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | DMP6050SFG-13 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 6000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DMP6050SFG-13 | Technology | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss) | 60 V | Current - Continuous Drain (Id) @ 25°C | 4.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 50mOhm @ 5A, 10V |
Product Description
DMP6050SFG-13 P-Channel 60 V 4.8A (Ta) 1.1W (Ta) Surface Mount PowerDI3333-8
Description and Applications
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Backlighting
Power Management Functions
DC-DC Converters
Features and Benefits
Low RDS(ON) – Ensures On State Losses Are Minimized
Small Form Factor Thermally Efficient Package Enables Higher Density End Products
Occupies Just 33% of The Board Area Occupied by SO-8 Enabling Smaller End Product
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data

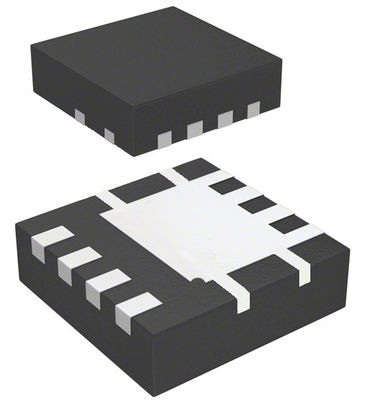

Case: POWERDI® 3333-8
Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish
Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.072 grams (Approximate)
specification of DMP6050SFG-13
|
Category
|
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
FET Type
|
P-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
4.8A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
50mOhm @ 5A, 10V
|
|
Vgs(th) (Max) @ Id
|
3V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
24 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1293 pF @ 30 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
1.1W (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PowerDI3333-8
|
|
Package / Case
|
8-PowerVDFN
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
