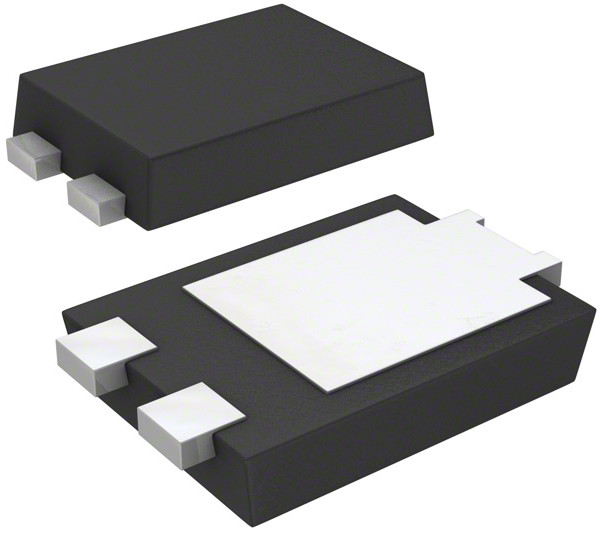

SBR10U45SP5-13 Diode Super Barrier 45V 10A Surface -65°C~150°C
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SBR10U45SP5-13 |
| Minimum Order Quantity | 5000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SBR10U45SP5-13 | Diode Type | Super Barrier |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 45 V | Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 470 MV @ 10 A | Current - Reverse Leakage @ Vr | 300 µA @ 45 V |
Product Description
SBR10U45SP5-13 Diode Super Barrier 45V 10A Surface -65°C~150°C
Features
Designed as Bypass Diodes for Solar Panels
Selectively Rated for +200°C Maximum Junction Temperature for High Thermal Reliability
Patented Super Barrier Rectifier Technology (SBR® )
High Forward Surge Capability
Ultra Low Forward Voltage Drop
Excellent High Temperature Stability
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
An Automotive-Compliant Part is Available Under Separate Datasheet
Mechanical Data
Case: PowerDI® 5
Case Material: Molded Plastic, Green Molding Compound; UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe; Solderable per MIL-STD-202, Method 208
Weight: 0.093 grams (Approximate)
specification of SBR10U45SP5-13
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
SBR®
|
|
Diode Type
|
Super Barrier
|
|
Voltage - DC Reverse (Vr) (Max)
|
45 V
|
|
Current - Average Rectified (Io)
|
10A
|
|
Voltage - Forward (Vf) (Max) @ If
|
470 mV @ 10 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Current - Reverse Leakage @ Vr
|
300 µA @ 45 V
|
|
Capacitance @ Vr, F
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
PowerDI™ 5
|
|
Supplier Device Package
|
PowerDI™ 5
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
