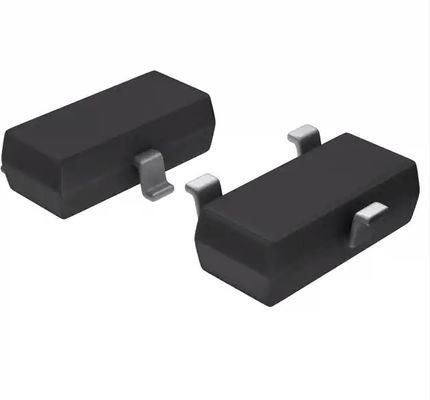

MMBT3904-7-F Bipolar (BJT) Transistor NPN 40 V 200 MA 300MHz 300 MW SOT-23-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | MMBT3904-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-7work days |
| Payment Terms | T/T |
| Supply Ability | 114000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | MMBT3904-7-F | Current - Collector (Ic) (Max) | 200 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max) | 40 V | Power - Max | 300 MW |
| Frequency - Transition | 300MHz | Mounting Type | Surface Mount |
Product Description
MMBT3904-7-F Bipolar (BJT) Transistor NPN 40 V 200 MA 300MHz 300 MW SOT-23-3
|
Category
|
Discrete Semiconductor Products
Transistors - Bipolar (BJT) - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
Automotive, AEC-Q101
|
|
Transistor Type
|
NPN
|
|
Current - Collector (Ic) (Max)
|
200 mA
|
|
Voltage - Collector Emitter Breakdown (Max)
|
40 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
300mV @ 5mA, 50mA
|
|
Current - Collector Cutoff (Max)
|
50nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 10mA, 1V
|
|
Power - Max
|
300 mW
|
|
Frequency - Transition
|
300MHz
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
Features
Epitaxial Planar Die Construction
Complementary PNP Type Available (MMBT3906)
Ideal for Medium Power Amplification and Switching
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable

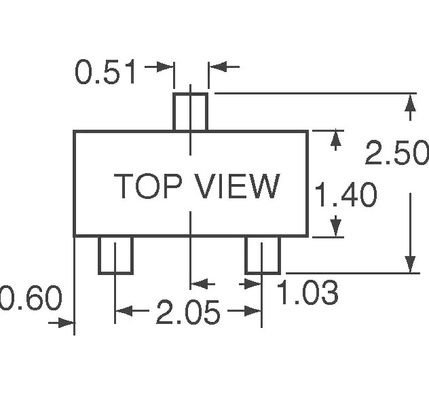

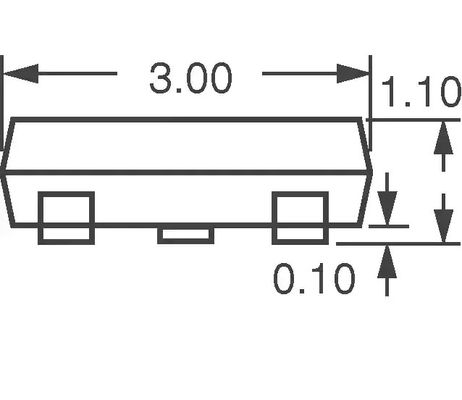

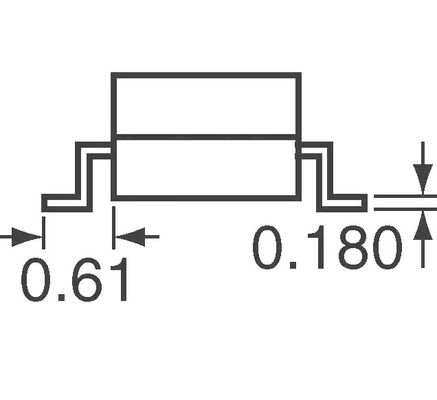

Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
