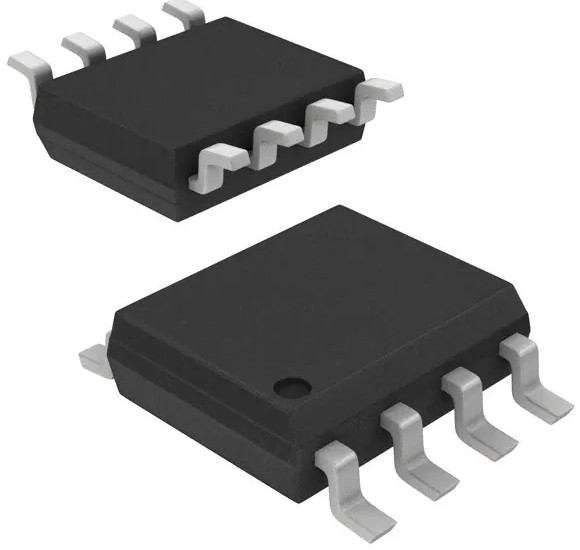

AS358AMTR-E1 General Purpose Amplifier 2 Circuit 8-SOIC 2mV 36V
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AS358AMTR-E1 |
| Minimum Order Quantity | 4000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 64000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AS358AMTR-E1 | Current - Input Bias | 20 NA |
|---|---|---|---|
| Voltage - Input Offset | 2 MV | Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Product Description
AS358AMTR-E1 General Purpose Amplifier 2 Circuit 8-SOIC 2mV 36V
Description
The AS358/358A/358B consists of two independent, high gain and internally frequency compensated operational amplifiers, they are specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages. Typical applications include transducer amplifiers, DC gain blocks and most conventional operational amplifier circuits. The AS358/358A/358B series is compatible with industry standard 358. The AS358A has more stringent input offset voltage than the AS358. The AS358 is available in PDIP-8, TDIP-8, SO-8, TSSOP-8 and MSOP-8 packages, the AS358A is available in PDIP-8 and SO-8 packages and AS358B is available in TSSOP-8 package.
Features
Internally Frequency Compensated for Unity Gain
Large Voltage Gain: 100dB (Typical)
Low Input Bias Current: 20nA (Typical)
Low Input Offset Voltage: 2mV (Typical)
Low Supply Current: 0.5mA (Typical)
Wide Power Supply Voltage:
Single Supply: 3V to 36V
Dual Supplies: ±1.5V to ±18V
Input Common Mode Voltage Range Includes Ground
Large Output Voltage Swing: 0V to VCC -1.5V
Lead-Free Packages: SO-8, PDIP-8 and TSSOP-8
Totally Lead-Free; RoHS Compliant
Lead-Free Packages, Available in “Green” Molding Compound: SO-8, PDIP-8, TDIP-8, TSSOP-8 and MSOP-8
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Pin Assignments
Applications
Battery Charger
Cordless Telephone
Switching Power Supply
specification of AS358AMTR-E1
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | Diodes Incorporated |
Series | - |
Amplifier Type | General Purpose |
Number of Circuits | 2 |
Output Type | - |
Slew Rate | - |
Current - Input Bias | 20 nA |
Voltage - Input Offset | 2 mV |
Current - Supply | 700µA (x2 Channels) |
Current - Output / Channel | 40 mA |
Voltage - Supply Span (Min) | 3 V |
Voltage - Supply Span (Max) | 36 V |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
