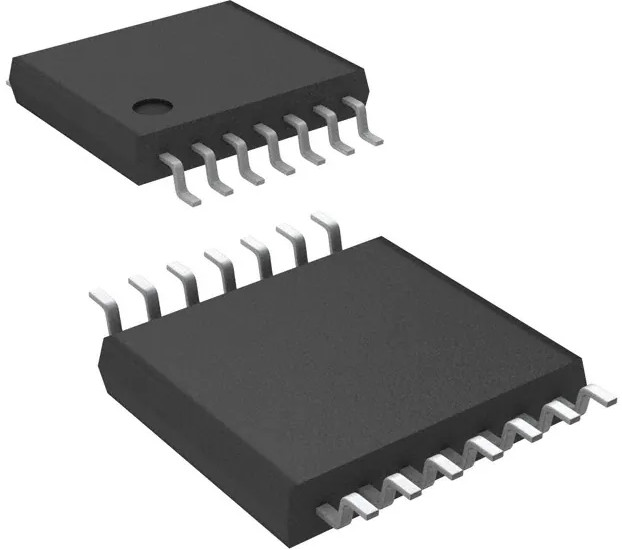

AS339GTR-G1 Comparator General Purpose Open Collector 14-TSSOP
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AS339GTR-G1 |
| Minimum Order Quantity | 4000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 8000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AS339GTR-G1 | Output Type | Open Collector |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V | Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Quiescent (Max) | 2mA | Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Product Description
AS339GTR-G1 Comparator General Purpose Open Collector 14-TSSOP
Description
The AS339/339A consist of four independent precision voltage comparators with a typical offset voltage of 2.0mV and high gain. They are specifically designed to operate from a single power supply over wide range of voltages. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The AS339/339A series are compatible with industry standard 339. The AS339A has more stringent input offset voltage than the AS339. The AS339 is available in SO-14 and TSSOP-14 packages, and the AS339A is available in SO-14 package.
Features
Wide Supply Voltage Range
Single Supply: 2.0V to 36V
Dual Supplies: ±1.0V to ±18V
Low Supply Current Drain: 0.9mA
Low Input Bias Current: 25nA (Typical)
Low Input Offset Current: ±5.0nA (Typical)
Low Input Offset Voltage: 2.0mV (Typical)
Input Common Mode Voltage Range Includes Ground
Differential Input Voltage Range Equals to the Power Supply Voltage
Low Output Saturation Voltage: 200mV at 4mA
Open Collector Output
Lead-Free Packages: SO-14, TSSOP-14
Totally Lead-Free; RoHS Compliant
Lead-Free Packages, Available in “Green” Molding Compound: SO-14, TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Pin Assignments
Applications
Battery Charger
Cordless Telephone
Switching Power Supply
DC-DC Module
PC Motherboard
Communication Equipment
specification of AS339GTR-G1
Category | Integrated Circuits (ICs) Linear Comparators |
Mfr | Diodes Incorporated |
Series | - |
Type | General Purpose |
Number of Elements | 4 |
Output Type | Open Collector |
Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
Voltage - Input Offset (Max) | 5mV @ 5V |
Current - Input Bias (Max) | 0.25µA @ 5V |
Current - Output (Typ) | 16mA @ 5V |
Current - Quiescent (Max) | 2mA |
CMRR, PSRR (Typ) | - |
Propagation Delay (Max) | - |
Hysteresis | - |
Operating Temperature | -40°C ~ 85°C |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Mounting Type | Surface Mount |
Supplier Device Package | 14-TSSOP |
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
