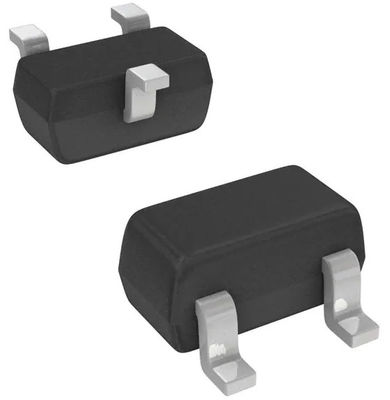

BAT54C-7-F Diode Array 1 Pair Common Cathode Schottky 30V 200mA Surface Mount
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | BAT54C-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 5000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | BAT54C-7-F | Diode Configuration | 1 Pair Common Cathode |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 30 V | Voltage - Forward (Vf) (Max) @ If | 800 MV @ 100 MA |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
Product Description
BAT54C-7-F Diode Array 1 Pair Common Cathode Schottky 30V 200mA Surface Mount
Description
200mA surface mount Schottky Barrier Diode in SOT23 (Standard) package, offers low turn-on voltage and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection, totally lead-free finish and RoHS compliant, ”Green” device.
Features and Benefits
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
For automotive applications requiring specific change control
This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
Mechanical Data
Package: SOT23
Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagrams Below
Weight: 0.008 grams (Approximate)
specification of BAT54C-7-F
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Arrays
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Diode Configuration
|
1 Pair Common Cathode
|
|
Diode Type
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
30 V
|
|
Current - Average Rectified (Io) (per Diode)
|
200mA (DC)
|
|
Voltage - Forward (Vf) (Max) @ If
|
800 mV @ 100 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
5 ns
|
|
Current - Reverse Leakage @ Vr
|
2 µA @ 25 V
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
