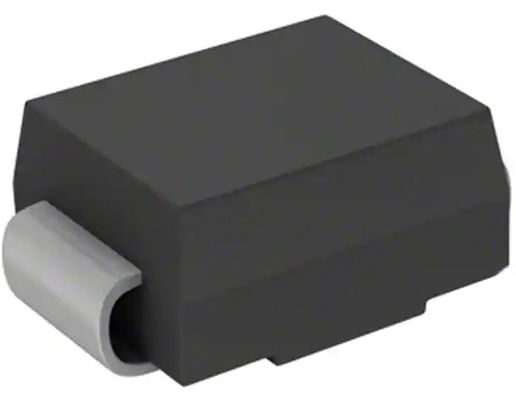

ES1D-13-F Diode Standard 200V 1A 920mV Surface Mount SMA DO-214AC 20pF 4V 1MHz
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | ES1D-13-F |
| Minimum Order Quantity | 5000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 200000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ES1D-13-F | Voltage - DC Reverse (Vr) (Max) | 200 V |
|---|---|---|---|
| Current - Average Rectified (Io) | 1A | Reverse Recovery Time (trr) | 25 Ns |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz | Package / Case | DO-214AC, SMA |
Product Description
ES1D-13-F Diode Standard 200V 1A 920mV Surface Mount SMA DO-214AC 20pF 4V 1MHz
Features
Glass Passivated Die Construction
Super-Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
Ideally Suited for Automated Assembly
Lead Free Finish; RoHS Compliant
Halogen and Antimony Free “Green” Device
Mechanical Data
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: 0.064 grams (Approximate)
specification of ES1D-13-F
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Diode Type
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
200 V
|
|
Current - Average Rectified (Io)
|
1A
|
|
Voltage - Forward (Vf) (Max) @ If
|
920 mV @ 1 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
25 ns
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 200 V
|
|
Capacitance @ Vr, F
|
20pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
