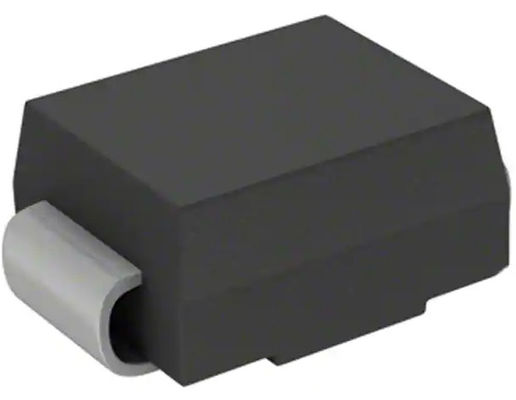

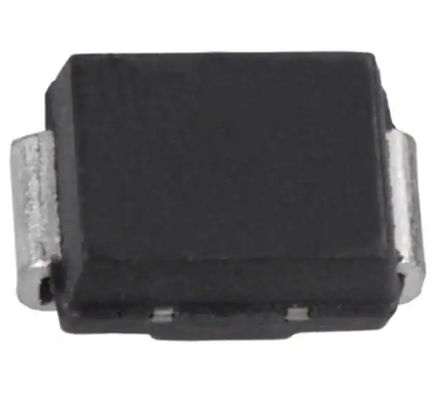

SMBJ33CA-13-F 53.3V Clamp 11.3A Ipp Tvs Diode Surface Mount SMB
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SMBJ33CA-13-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 12000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SMBJ33CA-13-F | Voltage - Reverse Standoff (Typ) | 33V |
|---|---|---|---|
| Voltage - Breakdown (Min) | 36.7V | Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse (10/1000µs) | 11.3A | Power - Peak Pulse | 600W |
Product Description
SMBJ33CA-13-F 53.3V Clamp 11.3A Ipp Tvs Diode Surface Mount SMB
Features
600W Peak Pulse Power Dissipation
5.0V to 200V Standoff Voltages
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data
Case: SMB
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
Weight: 0.1 grams (Approximate)
specification of SMBJ33CA-13-F
|
Category
|
Circuit Protection
TVS - Diodes
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
SMBJ
|
|
Type
|
Zener
|
|
Bidirectional Channels
|
1
|
|
Voltage - Reverse Standoff (Typ)
|
33V
|
|
Voltage - Breakdown (Min)
|
36.7V
|
|
Voltage - Clamping (Max) @ Ipp
|
53.3V
|
|
Current - Peak Pulse (10/1000µs)
|
11.3A
|
|
Power - Peak Pulse
|
600W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
-
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AA, SMB
|
|
Supplier Device Package
|
SMB
|
