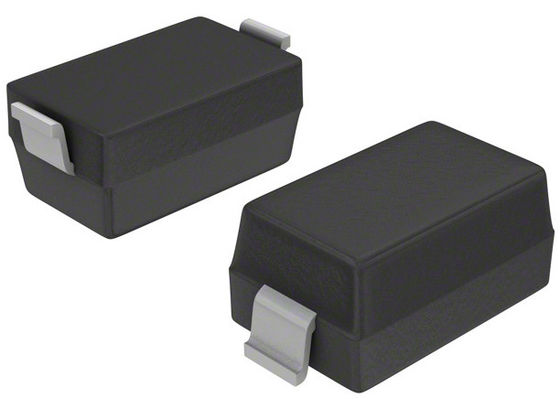

BZT52C36-7-F Zener Diode 36V 500mW 90 Ohms 6% Surface Mount SOD-123
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | BZT52C36-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 18000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mdoel | BZT52C36-7-F | Voltage - Zener (Nom) (Vz) | 36 V |
|---|---|---|---|
| Tolerance | ±6% | Power - Max | 500 MW |
| Impedance (Max) (Zzt) | 90 Ohms | Current - Reverse Leakage @ Vr | 100 NA @ 25.2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 MV @ 10 MA | Package / Case | SOD-123 |
Product Description

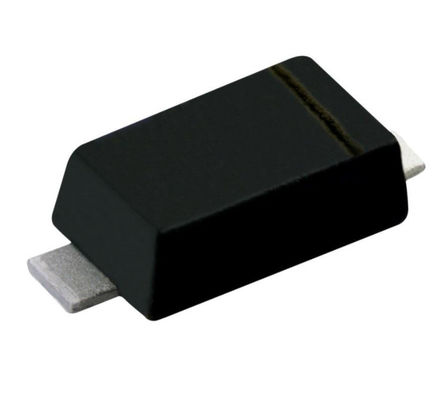

BZT52C36-7-F Zener Diode 36V 500mW 90 Ohms 6% Surface Mount SOD-123
Features
Planar Die Construction
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.010 grams (Approximate)
specification of BZT52C36-7-F
|
Category
|
Discrete Semiconductor Products
Diodes - Zener - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Voltage - Zener (Nom) (Vz)
|
36 V
|
|
Tolerance
|
±6%
|
|
Power - Max
|
500 mW
|
|
Impedance (Max) (Zzt)
|
90 Ohms
|
|
Current - Reverse Leakage @ Vr
|
100 nA @ 25.2 V
|
|
Voltage - Forward (Vf) (Max) @ If
|
900 mV @ 10 mA
|
|
Operating Temperature
|
-65°C ~ 150°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOD-123
|
|
Supplier Device Package
|
SOD-123
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
