DCX114YU-7-F Pre-Biased Bipolar Transistor BJT 50V 100mA 250MHz 200mW
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | DCX114YU-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 15000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DCX114YU-7-F | Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
|---|---|---|---|
| Current - Collector (Ic) (Max) | 100mA | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 10kOhms | Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250MHz | Package / Case | 6-TSSOP, SC-88, SOT-363 |
Product Description
DCX114YU-7-F Pre-Biased Bipolar Transistor BJT 50V 100mA 250MHz 200mW
Features
Epitaxial Planar Die Construction
Built-In Biasing Resistors
Surface Mount Package Suited for Automated Assembly
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony-Free. “Green” Device
For automotive applications requiring specific change control.
Mechanical Data

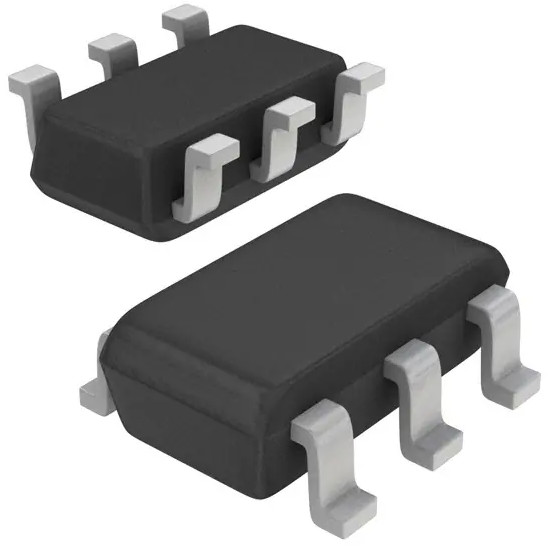

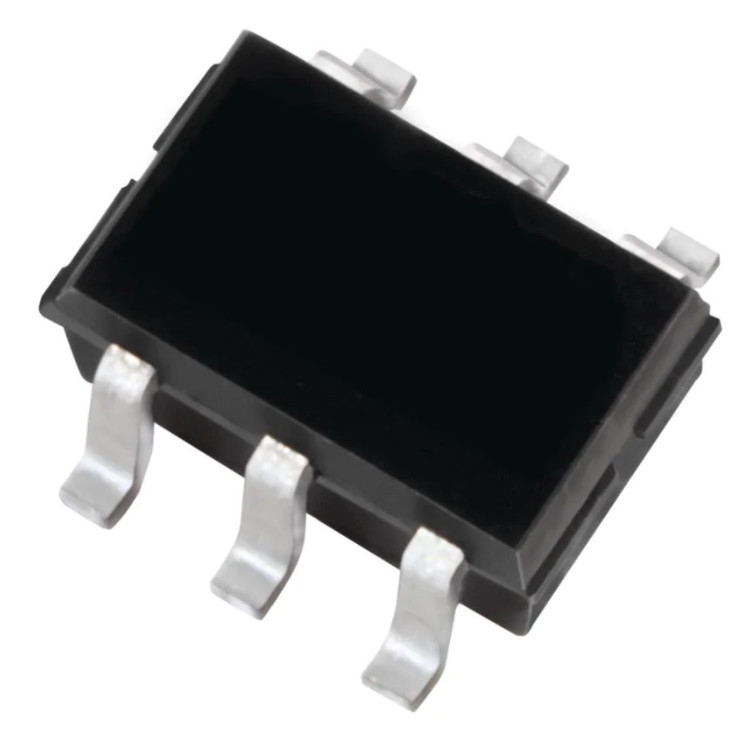

Package: SOT363
Package Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
specification of DCX114YU-7-F
|
Category
|
Discrete Semiconductor Products
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Transistor Type
|
1 NPN, 1 PNP - Pre-Biased (Dual)
|
|
Current - Collector (Ic) (Max)
|
100mA
|
|
Voltage - Collector Emitter Breakdown (Max)
|
50V
|
|
Resistor - Base (R1)
|
10kOhms
|
|
Resistor - Emitter Base (R2)
|
47kOhms
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
68 @ 10mA, 5V
|
|
Vce Saturation (Max) @ Ib, Ic
|
300mV @ 250µA, 5mA
|
|
Current - Collector Cutoff (Max)
|
500nA
|
|
Frequency - Transition
|
250MHz
|
|
Power - Max
|
200mW
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-TSSOP, SC-88, SOT-363
|
|
Supplier Device Package
|
SOT-363
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
