74LVC1G04W5-7 Inverter IC 1 Channel SOT-25 1.65V-5.5V 200µA 32mA
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | 74LVC1G04W5-7 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 21000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 74LVC1G04W5-7 | Voltage - Supply | 1.65V ~ 5.5V |
|---|---|---|---|
| Current - Quiescent (Max) | 200 µA | Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.7V ~ 0.8V | Input Logic Level - High | 1.7V ~ 2V |
Product Description

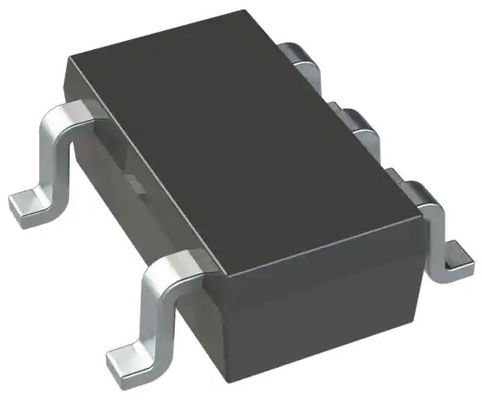

74LVC1G04W5-7 Inverter IC 1 Channel SOT-25 1.65V-5.5V 200µA 32mA
Description
The 74LVC1G04 is a single inverter gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V, allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down.
Features
• Wide Supply Voltage Range from 1.65 to 5.5V
• ± 24mA Output Drive at 3.3V
• CMOS Low Power Consumption
• IOFF Supports Partial-Power-Down Mode Operation
• Inputs Accept Up to 5.5V
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Range of Package Options
• Direct Interface with TTL Levels
Applications
• Voltage Level Shifting
• General Purpose Logic
• Power Down Signal Isolation
• Wide array of products such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation/GPS
MP3 players, Cameras, Video Recorders
specification of 74LVC1G04W5-7
Category | Integrated Circuits (ICs) Logic Gates and Inverters |
Mfr | Diodes Incorporated |
Series | 74LVC |
Logic Type | Inverter |
Number of Circuits | 1 |
Number of Inputs | 1 |
Features | - |
Voltage - Supply | 1.65V ~ 5.5V |
Current - Quiescent (Max) | 200 µA |
Current - Output High, Low | 32mA, 32mA |
Input Logic Level - Low | 0.7V ~ 0.8V |
Input Logic Level - High | 1.7V ~ 2V |
Max Propagation Delay @ V, Max CL | 1.6ns @ 5V, 50pF |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Supplier Device Package | SOT-25 |
Package / Case | SC-74A, SOT-753 |
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
