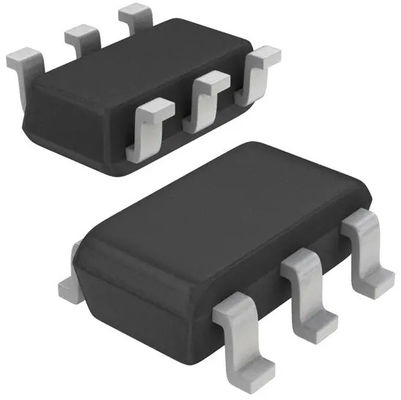

AP4313KTR-G1 Current Sense Amplifier 1 Circuit SOT-23-6 600µA 50 MA
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP4313KTR-G1 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Payment Terms | T/T |
| Supply Ability | 18000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AP4313KTR-G1 | Current - Supply | 600µA |
|---|---|---|---|
| Current - Output / Channel | 50 MA | Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 18 V | Package / Case | SOT-23-6 |
Product Description
AP4313KTR-G1 Current Sense Amplifier 1 Circuit SOT-23-6 600µA 50 MA
Description
The AP4313 is a highly integrated solution for a constant voltage/constant current mode SMPS application.
The AP4313 contains one 1.21V voltage reference with 1% accuracy, one current sensing circuit and two operational amplifiers. Combining the voltage reference with one operational amplifier makes AP4313 an ideal voltage controller for use in adapters and battery chargers. The other low voltage reference combined with the other operational amplifier makes it an ideal current limiter for output low side current sensing.
The AP4313 is available in SOT26 package.
Features
Constant Voltage and Constant Current Control
Precision Internal Voltage Reference
Few External Components
Easy Compensation
Low Supply Current: 0.5mA
Operating Temperature Range: -40 to +105oC
Pin Assignments
Applications
Adapters
Battery Chargers
specification of AP4313KTR-G1
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Amplifier Type
|
Current Sense
|
|
Number of Circuits
|
1
|
|
Output Type
|
-
|
|
Slew Rate
|
-
|
|
Current - Input Bias
|
50 nA
|
|
Current - Supply
|
600µA
|
|
Current - Output / Channel
|
50 mA
|
|
Voltage - Supply Span (Min)
|
2.5 V
|
|
Voltage - Supply Span (Max)
|
18 V
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-6
|
|
Supplier Device Package
|
SOT-23-6
|
