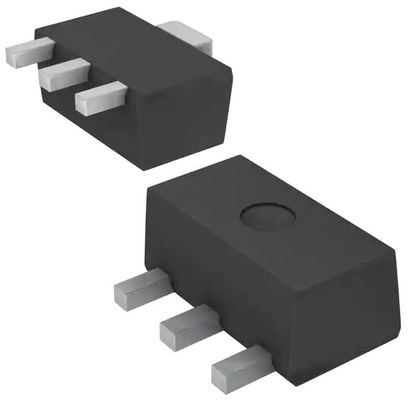

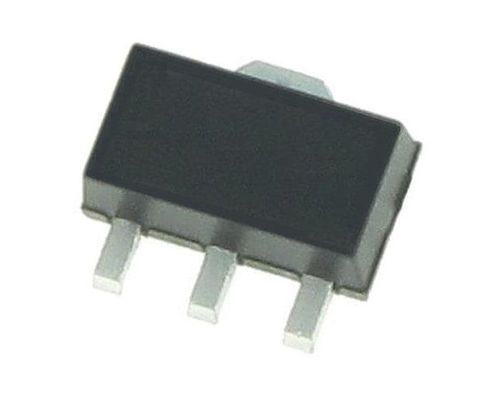

AS78L05RTR-E1 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AS78L05RTR-E1 |
| Minimum Order Quantity | 1000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 45000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AS78L05RTR-E1 | Output Configuration | Positive |
|---|---|---|---|
| Output Type | Fixed | Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V | Current - Output | 100mA |
| Current - Quiescent (Iq) | 5.5 MA | Package / Case | TO-243AA |
Product Description
AS78L05RTR-E1 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
Description
The AS78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 100mA. The AS78LXX series are available in TO-92 (bulk or ammo packing), SOT-89 and SOIC-8 packages.
Features
Output Current up to 100mA
Fixed Output Voltages of 5V, 12V and 15V
Output Voltage Accuracy of ±5% over the Full Temperature Range
Internal Short Circuit Current Limiting
Internal Thermal Overload Protection
No External Components
Output Transistor Safe-area Protection
Applications
Consumer Electronics
Microprocessor Power Supply
Mother Board
specification of AS78L05RTR-E1
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
30V
|
|
Voltage - Output (Min/Fixed)
|
5V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
1.8V @ 100mA (Typ)
|
|
Current - Output
|
100mA
|
|
Current - Quiescent (Iq)
|
5.5 mA
|
|
PSRR
|
62dB (120Hz)
|
|
Control Features
|
-
|
|
Protection Features
|
Over Temperature, Short Circuit
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-243AA
|
|
Supplier Device Package
|
SOT-89-3
|
