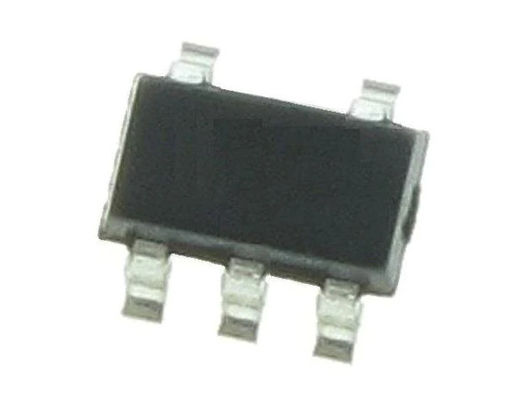

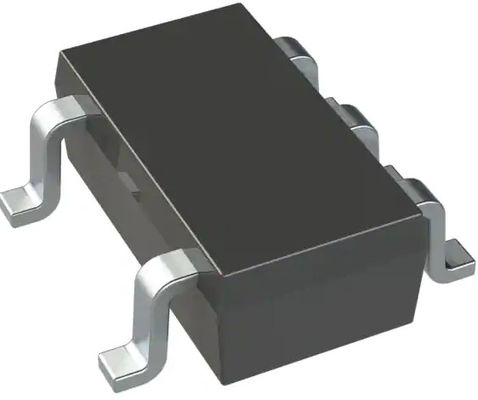

AP3012KTR-E1 Boost Switching Regulator IC 1.25V 1 Output 500mA SC-74A SOT-753
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP3012KTR-E1 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 60000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AP3012KTR-E1 | Output Configuration | Positive |
|---|---|---|---|
| Topology | Boost | Output Type | Adjustable |
| Voltage - Input (Max) | 16V | Voltage - Output (Max) | 29V |
| Current - Output | 500mA (Switch) | Package / Case | SC-74A, SOT-753 |
Product Description
AP3012KTR-E1 Boost Switching Regulator IC 1.25V 1 Output 500mA SC-74A SOT-753
General Description
The AP3012 is a high power, constant frequency, current mode PWM, inductor based, step-up (boost) converter. The converter operates at high frequency (1.5MHz) so that a small, low profile inductor can be used. The AP3012 has built-in overvoltage protection (OVP) to allow the device goes into shutdown mode when the output voltage exceeds the OVP threshold of 29V. The AP3012 is available in standard SOT-23-5 package.
Features
· High Efficiency up to 81%
· Adjustable Output Voltage up to 29V
· Shutdown Current 1µA Typical
· 1.5MHz Switching Frequency
· 36V 500mA Rugged Integrated Bipolar Switch
· Built-in Soft-start to Reduce Inrush Current During Start-up
· On-chip Overvoltage Protection
· Uses Low ESR Ceramic Output Capacitor
· Uses Small Inductor
Applications
· LCD/OLED Display Bias Supply
· White LED Driver for LCD Display Backlights
· Cellular Phones
specification of AP3012KTR-E1
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Function
|
Step-Up
|
|
Output Configuration
|
Positive
|
|
Topology
|
Boost
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.6V
|
|
Voltage - Input (Max)
|
16V
|
|
Voltage - Output (Min/Fixed)
|
1.25V
|
|
Voltage - Output (Max)
|
29V
|
|
Current - Output
|
500mA (Switch)
|
|
Frequency - Switching
|
1.5MHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
