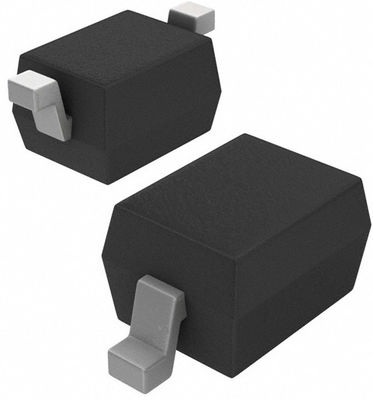

1N4148WS-7-F Diode Standard 75 V 150mA Surface Mount SOD-323
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | 1N4148WS-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 12000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 1N4148WS-7-F | Diode Type | Standard |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 75 V | Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 MA | Package / Case | SC-76, SOD-323 |
Product Description
1N4148WS-7-F Diode Standard 75 V 150mA Surface Mount SOD-323
Features
Fast Switching Speed
Small Surface Mount Package
For General-Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
The DIODES™ 1N4148WSQ is suitable for automotive applications requiring specific change control;
Mechanical Data
Package: SOD323
Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe (Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.006 grams (Approximate)
specification of 1N4148WS-7-F
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Diode Type
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
75 V
|
|
Current - Average Rectified (Io)
|
150mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.25 V @ 150 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
4 ns
|
|
Current - Reverse Leakage @ Vr
|
1 µA @ 75 V
|
|
Capacitance @ Vr, F
|
2pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-76, SOD-323
|
|
Supplier Device Package
|
SOD-323
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
