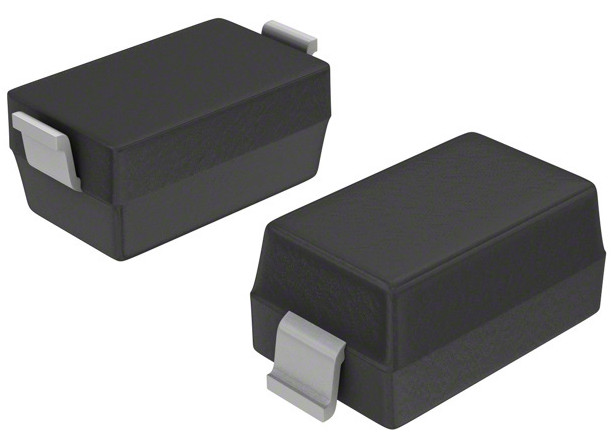

1N4148W-7-F Diode Standard 100 V 300mA Surface Mount SOD-123
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | 1N4148W-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 15000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 1N4148W-7-F | Voltage - DC Reverse (Vr) (Max) | 100 V |
|---|---|---|---|
| Current - Average Rectified (Io) | 300mA | Voltage - Forward (Vf) (Max) If | 1.25 V 150 MA |
| Current - Reverse Leakage Vr | 1 µA 100 V | Package / Case | SOD-123 |
Product Description
1N4148W-7-F Diode Standard 100 V 300mA Surface Mount SOD-123
Features
• Fast Switching Speed
• Low Forward Voltage: Maximum of 0.715V at 1mA
• Fast Reverse Recovery: Maximum of 4ns
• Low Capacitance: Maximum of 2pF
• Surface Mount Package Ideally Suited for Automated Insertion
• For General Purpose Switching Applications
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• The 1N4148WQ is suitable for automotive applications requiring specific change control;
Mechanical Data
• Case: SOD123
• Case Material: Molded Plastic, “Green” Molding Compound, UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe; (Lead-Free Plating). Solderable per MIL-STD-202, Method 208
• Polarity: Cathode Band
• Weight: 0.01 grams (Approximate)
specification of 1N4148W-7-F
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Diode Type
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
300mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.25 V @ 150 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
4 ns
|
|
Current - Reverse Leakage @ Vr
|
1 µA @ 100 V
|
|
Capacitance @ Vr, F
|
2pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOD-123
|
|
Supplier Device Package
|
SOD-123
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
