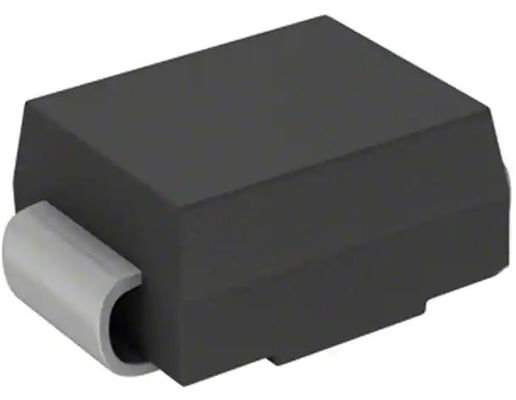

SMAJ26A-13-F 42.1V Clamp 9.5A Ipp Tvs Diode Surface Mount SMA
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SMAJ26A-13-F |
| Minimum Order Quantity | 5000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 40000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SMAJ26A-13-F | Voltage - Reverse Standoff (Typ) | 26V |
|---|---|---|---|
| Voltage - Breakdown (Min) | 28.9V | Voltage - Clamping (Max) Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 9.5A | Package / Case | DO-214AC, SMA |
Product Description
SMAJ26A-13-F 42.1V Clamp 9.5A Ipp Tvs Diode Surface Mount SMA
Features
400W Peak Pulse Power Dissipation
Glass Passivated Die Construction
Unidirectional and Bidirectional Versions Available
Excellent Clamping Capability
Fast Response Time
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band (Bidirectional Devices do not Have a Polarity Indicator)
Weight: 0.064 grams (Approximate)
specification of SMAJ26A-13-F
|
Category
|
Circuit Protection
TVS - Diodes
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Type
|
Zener
|
|
Unidirectional Channels
|
1
|
|
Voltage - Reverse Standoff (Typ)
|
26V
|
|
Voltage - Breakdown (Min)
|
28.9V
|
|
Voltage - Clamping (Max) @ Ipp
|
42.1V
|
|
Current - Peak Pulse (10/1000µs)
|
9.5A
|
|
Power - Peak Pulse
|
400W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
-
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
