AP4320BK6TR-G1 Converter Offline Flyback Topology 65kHz SOT-26
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP4320BK6TR-G1 |
| Minimum Order Quantity | 3000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 15000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AP4320BK6TR-G1 | Current - Input Bias | 50 NA |
|---|---|---|---|
| Current - Supply | 500µA | Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 18 V | Package / Case | SOT-23-6 |
Product Description

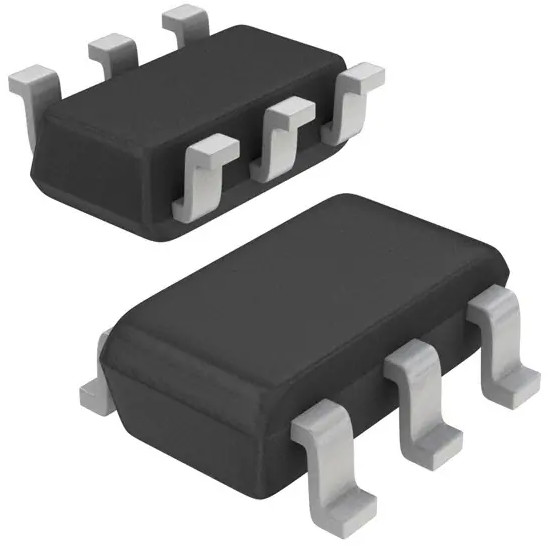

AP4320BK6TR-G1 Converter Offline Flyback Topology 65kHz SOT-26
Description
The AP4320 is a highly integrated solution for a constant voltage/constant current mode SMPS application. The AP4320 contains one 2.5V voltage reference and two operational amplifiers. The 2.5V voltage reference, combined with one operational amplifier, makes of an ideal voltage controller for use in adapters and battery chargers. The low voltage reference, combined with another operational amplifier, makes of an ideal current limiter for output low side current sensing. The AP4320 is available in SOT26 package.
Features
Constant Voltage and Constant Current Control
Low External Component Count
Easy Compensation
Low Supply Current: 190μA
Precision Internal Voltage Reference: 2.5V
Operating Supply Voltage: 3.5V to 36V
Low Current Sense Threshold: 30mV/50mV
Pin Assignments
Applications
AC/DC Adapters
Battery Chargers
LED Drivers
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Amplifier Type
|
Current Sense
|
|
Number of Circuits
|
1
|
|
Output Type
|
-
|
|
Slew Rate
|
-
|
|
Current - Input Bias
|
50 nA
|
|
Current - Supply
|
500µA
|
|
Current - Output / Channel
|
27 mA
|
|
Voltage - Supply Span (Min)
|
2.5 V
|
|
Voltage - Supply Span (Max)
|
18 V
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-6
|
|
Supplier Device Package
|
SOT-26
|
ORIGINAL
