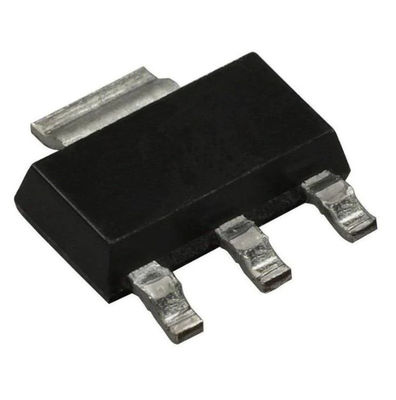

AZ1117EH-3.3TRG1 Linear Voltage Regulator IC Positive Fixed Output 1A SOT-223-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AZ1117EH-3.3TRG1 |
| Minimum Order Quantity | 1000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 132000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AZ1117EH-3.3TRG1 | Voltage - Input (Max) | 13V |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 3.3V | Current - Output | 1A |
| Current - Quiescent (Iq) | 6 MA | Package / Case | TO-261-4, TO-261AA |
Product Description

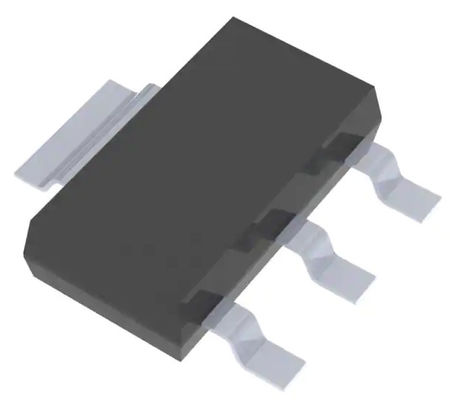

AZ1117EH-3.3TRG1 Linear Voltage Regulator IC Positive Fixed Output 1A SOT-223-3
Description
The AZ1117E is a low-dropout three-terminal regulator with 1.0A output current ability, and the dropout voltage is specified at typical 1.1V at 1.0A current load decreasing at lower load currents. The AZ1117E is optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown protection solutions. Its circuit includes a trimmed band gap reference to assure output voltage accuracy to be within ±1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature. The AZ1117E is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V fixed-output voltage versions and ADJ output voltage version. The fixed versions integrate the adjust resistors. The AZ1117E is available in the industry-standard SOT-223 package.
Applications
• TVs and LCD Monitors
• PC Peripherals: Notebooks, Motherboards
• STB
Pin Assignments
Features
• Provides ADJ Version (VREF = 1.25V) and Fixed Voltage 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V with Accuracy ±1% (Except 1.2V)
• Current Limit: 1.3A (Typ.)
• Dropout Voltage: 1.1V (Typ.) @ IOUT = 1A
• Regulator Stable with Low ESR MLCC
• Excellent Line Regulation: 0.001%/V (Typ.) @ IOUT = 30mA
• Excellent Load Regulation: 0.2%/A @ IOUT = 1A
• Quiescent Current: 3.5mA
• Low Output Noise • PSRR: 70dB
• OTSD Protection
• Operation Junction Temperature: -40°C to +125°C
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
AZ1117E
|
|
Product Status
|
Obsolete
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
13V
|
|
Voltage - Output (Min/Fixed)
|
3.3V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
1.3V 1A
|
|
Current - Output
|
1A
|
|
Current - Quiescent (Iq)
|
6 mA
|
|
PSRR
|
70dB (120Hz ~ 1kHz)
|
|
Control Features
|
-
|
|
Protection Features
|
Thermal Shutdown
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-261-4, TO-261AA
|
|
Supplier Device Package
|
SOT-223-3
|
