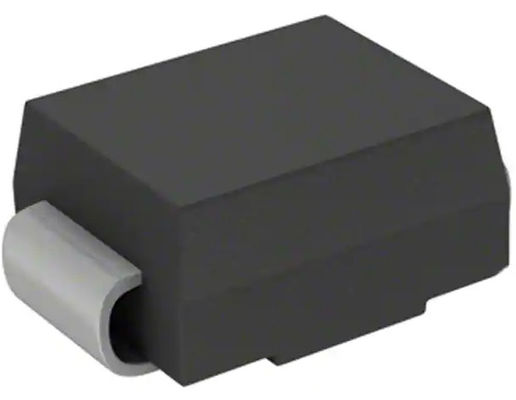

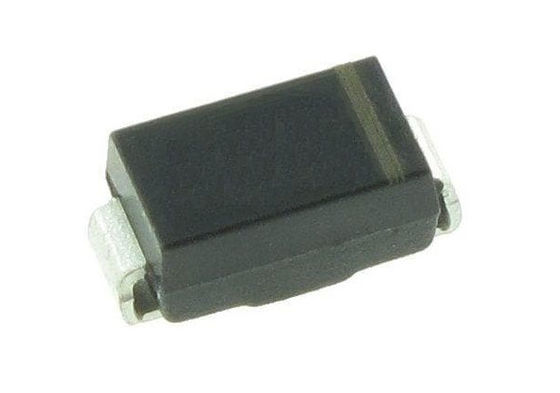

SMAJ5.0CA-13-F 9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SMA
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SMAJ5.0CA-13-F |
| Minimum Order Quantity | 5000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 90000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SMAJ5.0CA-13-F | Type | Zener |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ) | 5V | Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W | Package / Case | DO-214AC, SMA |
Product Description
SMAJ5.0CA-13-F 9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SMA
Features
400W Peak Pulse Power Dissipation
Glass Passivated Die Construction
Unidirectional and Bidirectional Versions Available
Excellent Clamping Capability
Fast Response Time
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
An Automotive- Compliant Part is Available Under Separate
Mechanical Data
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band (Bidirectional Devices do not Have a Polarity Indicator)
Weight: 0.064 grams (Approximate)
|
Category
|
Circuit Protection
TVS - Diodes
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Type
|
Zener
|
|
Bidirectional Channels
|
1
|
|
Voltage - Reverse Standoff (Typ)
|
5V
|
|
Voltage - Breakdown (Min)
|
6.4V
|
|
Voltage - Clamping (Max) @ Ipp
|
9.2V
|
|
Current - Peak Pulse (10/1000µs)
|
43.5A
|
|
Power - Peak Pulse
|
400W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
-
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
