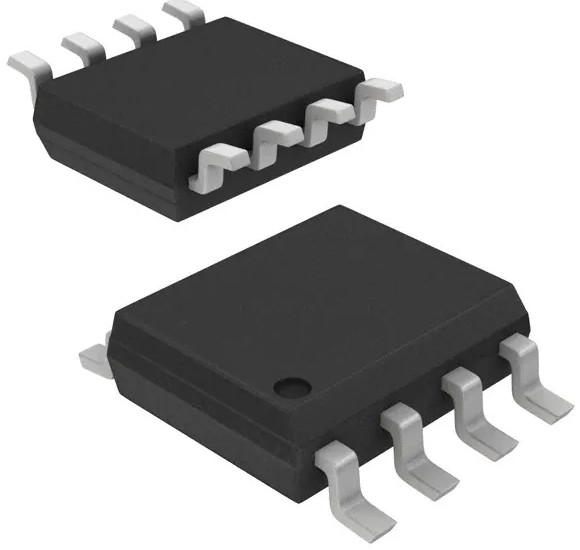

PAM8302AADCR Amplifier IC 1-Channel (Mono) Class D 8-SOP 2.5W
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | PAM8302AADCR |
| Minimum Order Quantity | 2500 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 5000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Depop, Short-Circuit And Thermal Protection | Model | PAM8302AADCR |
|---|---|---|---|
| Type | Class D | Output Type | 1-Channel (Mono) |
| Voltage - Supply | 2V ~ 5.5V | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Product Description
PAM8302AADCR Amplifier IC 1-Channel (Mono) Class D 8-SOP 2.5W
Description
The PAM8302A is a 2.5W Class-D mono audio amplifier. Its low THD+N feature offers high-quality sound reproduction. The new filterless architecture allows the device to drive speakers directly instead of using low-pass output filters thus saving system cost and PCB area. With the same number of external components, the efficiency of the PAM8302A is much better than that of Class-AB cousins. It can optimize battery life thus is ideal for portable applications. The PAM8302A is available in MSOP-8, SO-8, and U-DFN3030-8 (Type E) packages.
Features
2.5W Output at 10% THD with a 4Ω Load and 5V Power Supply
Filterless, Low Quiescent Current and Low EMI
High Efficiency up to 88%
Superior Low Noise
Short Circuit Protection
Thermal Shutdown
Few External Components to Save Space and Cost
MSOP-8, SO-8 and U-DFN3030-8 (Type E) Packages Available
Applications
PMP/MP4
GPS
Portable Speakers
2-Way Radios
Hands-Free Phones/Speaker Phones
Cellular Phones
Pin Assignments
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Audio Amplifiers
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Type
|
Class D
|
|
Output Type
|
1-Channel (Mono)
|
|
Max Output Power x Channels @ Load
|
2.5W x 1 @ 4Ohm
|
|
Voltage - Supply
|
2V ~ 5.5V
|
|
Features
|
Depop, Short-Circuit and Thermal Protection
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Supplier Device Package
|
8-SOP
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
