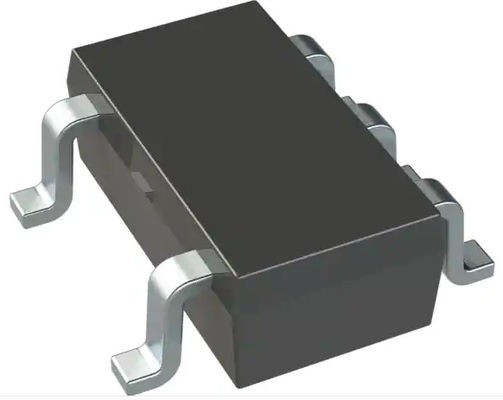

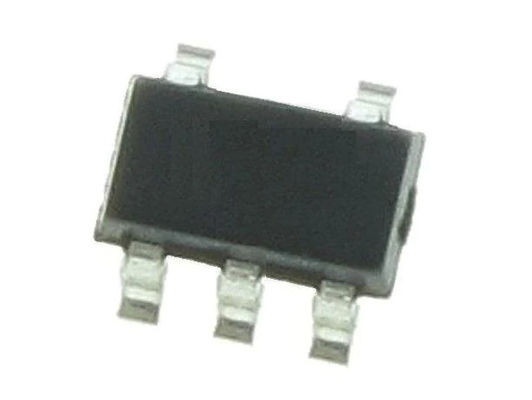

AP2125K-2.8TRG1 Linear Voltage Regulator Positive Fixed 1 Output 300mA SOT-23-5
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP2125K-2.8TRG1 |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 30000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AP2125K-2.8TRG1 | Output Configuration | Positive |
|---|---|---|---|
| Output Type | Fixed | Voltage - Input (Max) | 6V |
| Current - Output | 300mA | Package / Case | SC-74A, SOT-753 |
Product Description
AP2125K-2.8TRG1 Linear Voltage Regulator Positive Fixed 1 Output 300mA SOT-23-5
Description
The AP2125 series are 300mA, positive voltage regulator ICs fabricated by CMOS process. Each of these ICs is equipped with a voltage reference, an error amplifier, a resistor network for setting output voltage, a chip enable circuit, a current limit circuit and OTSD (over temperature shut down) circuit to prevent the IC from over current and over temperature. The AP2125 series have features of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy and low current consumption which make them ideal for use in various batterypowered apparatus. The AP2125 have 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.15V and 4.2V fixed voltage versions. These ICs are available in tiny SC-70-5 packages as well as industry standard SOT-23-3 and SOT-23-5 packages.
Features
Excellent Ripple Rejection: 70dB Typical (1.8V Version)
Low Dropout Voltage: 65mV (IOUT=100mA, 3.3V Version)
Low Standby Current: 0.01µA Typical
Low Quiescent Current: 60µA Typical
Extremely Low Noise: 50µVrms Typical
Maximum Output Current: 300mA (Min.)
High Output Voltage Accuracy: ±2%
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Applications
CDMA/GSM Cellular Handsets
Battery-powered Equipments
Laptops, Palmtops, Notebook Computers
Hand-held Instruments
PCMCIA Cards
Portable Information Appliances
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
6V
|
|
Voltage - Output (Min/Fixed)
|
2.8V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
0.3V 300mA
|
|
Current - Output
|
300mA
|
|
Current - Quiescent (Iq)
|
90 µA
|
|
PSRR
|
65dB (100Hz ~ 1kHz)
|
|
Control Features
|
Enable
|
|
Protection Features
|
Over Current, Over Temperature
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
