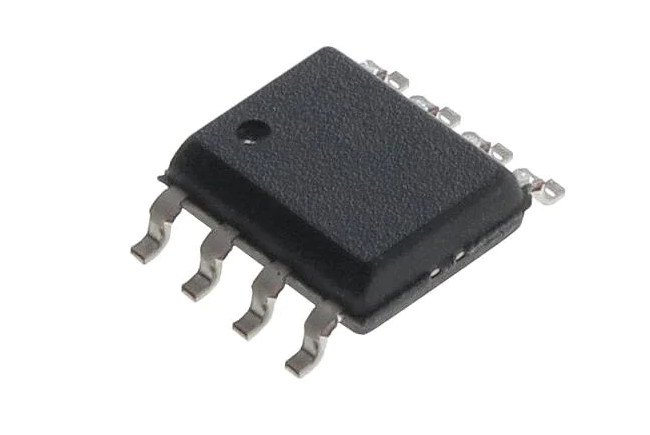

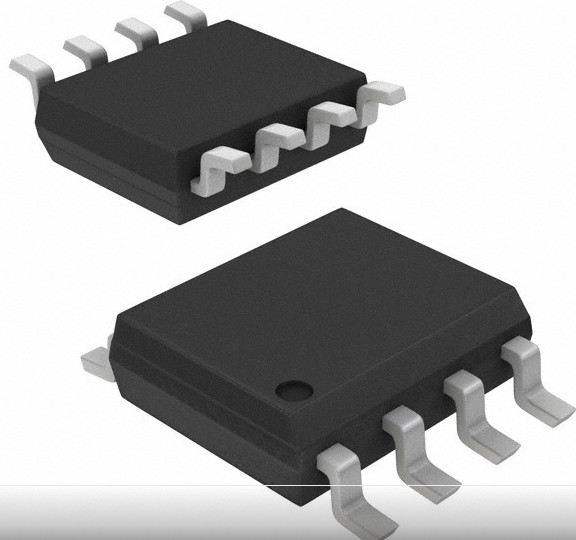

AP4310AMTR-G1 General Purpose Amplifier 2 Circuit 8-SO 0.5mV 75uA 1Mhz
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AP4310AMTR-G1 |
| Minimum Order Quantity | 4000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 24000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AP4310AMTR-G1 | Amplifier Type | General Purpose |
|---|---|---|---|
| Number Of Circuits | 2 | Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 20 NA | Current - Output / Channel | 40 MA |
Product Description
AP4310AMTR-G1 General Purpose Amplifier 2 Circuit 8-SO 0.5mV 75uA 1Mhz
Description
The AP4310A is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. The AP4310A is available in SO-8 package.
Features
OP Amp
Input Offset Voltage: 0.5mV
Supply Current: 75μA per OP Amp at 5.0V Supply Voltage
Unity Gain Bandwidth:1MHz
Output Voltage Swing: 0 to VCC-1.5V
Power Supply Range: 3 to 36V
Voltage Reference
Fixed Output Voltage Reference: 2.5V
Reference Voltage Tolerance :±0.4%
Sink Current Capability: 0.05 to 80mA
Typical Output Impedance: 0.2Ω
Totally Lead-free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Applications
Battery Charger
Switching Power Supply
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
2
|
|
Output Type
|
-
|
|
Slew Rate
|
0.5V/µs
|
|
Gain Bandwidth Product
|
1 MHz
|
|
Current - Input Bias
|
20 nA
|
|
Voltage - Input Offset
|
500 µV
|
|
Current - Supply
|
150µA (x2 Channels)
|
|
Current - Output / Channel
|
40 mA
|
|
Voltage - Supply Span (Min)
|
3 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SO
|
