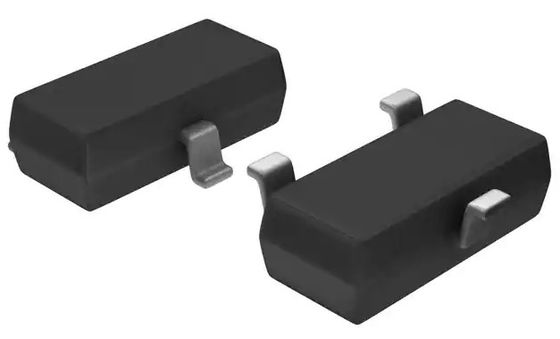

2N7002-7-F N-Channel 60 V 115mA (Ta) 370mW (Ta) Surface Mount SOT-23-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | 2N7002-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 45000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 2N7002-7-F | FET Type | N-Channel |
|---|---|---|---|
| Drain To Source Voltage (Vdss) | 60 V | Current - Continuous Drain (Id) 25°C | 115mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | Package / Case | TO-236-3, SC-59, SOT-23-3 |
Product Description

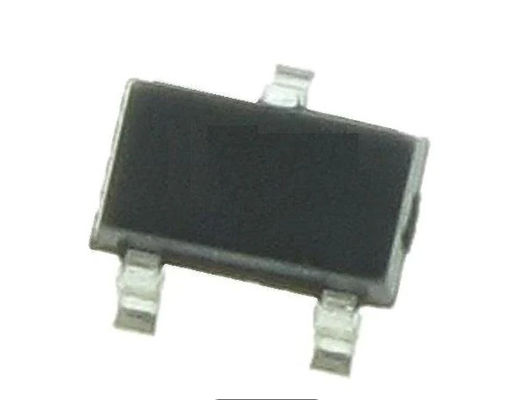

2N7002-7-F N-Channel 60 V 115mA (Ta) 370mW (Ta) Surface Mount SOT-23-3
Description
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
Motor Control
Power Management Functions
Features
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.008 grams (approximate)
|
Category
|
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
115mA (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
7.5Ohm @ 50mA, 5V
|
|
Vgs(th) (Max) @ Id
|
2.5V @ 250µA
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
50 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
370mW (Ta)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23-3
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
