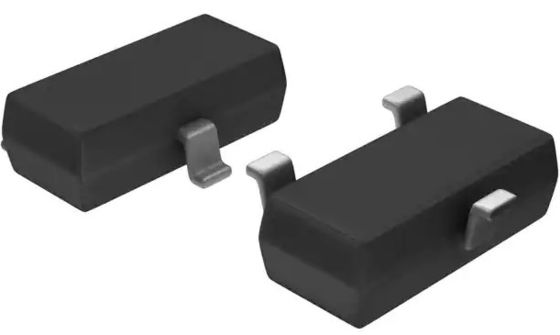

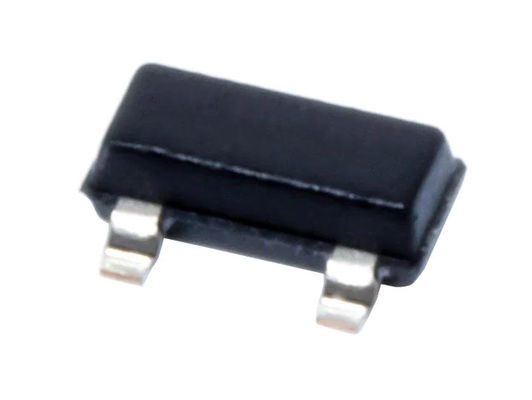

AZ431AN-ATRE1 Shunt Voltage IC Adjustable 2.5V 36 VV ±0.4% 100 MA SOT-23-3
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AZ431AN-ATRE1 |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 395000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AZ431AN-ATRE1 | Reference Type | Shunt |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 2.5V | Voltage - Output (Max) | 36 V |
| Current - Output | 100 MA | Package / Case | TO-236-3, SC-59, SOT-23-3 |
Product Description
AZ431AN-ATRE1 Shunt Voltage IC Adjustable 2.5V 36 VV ±0.4% 100 MA SOT-23-3
Description
The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in 3 packages: TO92 (Bulk or Ammo Packing), SOT23 and SOT89.
Features
Programmable Precise Output Voltage from 2.5V to 36V
High Stability under Capacitive Load
Low Temperature Deviation: 4.5mV Typical
Low Equivalent Full-range Temperature Coefficient with 20PPM/°C Typical
Sink Current Capacity from 1mA to 100mA
Low Output Noise
Wide Operating Range of -40 to +125°C
Lead-Free Packages: TO92, SOT23, SOT89
Totally Lead-Free; RoHS Compliant
Lead-Free Packages, Available in “Green” Molding Compound: TO92, SOT23
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Applications
Charger
Voltage Adapter
Switching Power Supply
Graphic Card
Precision Voltage Reference
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Reference
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Reference Type
|
Shunt
|
|
Output Type
|
Adjustable
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
Voltage - Output (Max)
|
36 V
|
|
Current - Output
|
100 mA
|
|
Tolerance
|
±0.4%
|
|
Temperature Coefficient
|
20ppm/°C Typical
|
|
Noise - 0.1Hz to 10Hz
|
-
|
|
Noise - 10Hz to 10kHz
|
-
|
|
Voltage - Input
|
-
|
|
Current - Supply
|
-
|
|
Current - Cathode
|
1 mA
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
