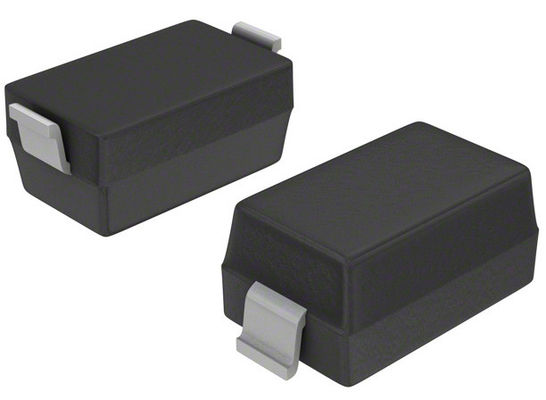

BAV20W-7-F Diode Standard 150 V 200mA Surface Mount SOD-123 5pF 0V 1MHz
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | BAV20W-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 5000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | BAV20W-7-F | Diode Type | Standard |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 150 V | Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage Vr | 100 NA 150 V | Package / Case | SOD-123 |
Product Description
BAV20W-7-F Diode Standard 150 V 200mA Surface Mount SOD-123 5pF 0V 1MHz
Features
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automated Insertion
• For General Purpose Switching Applications
• High Reverse Breakdown Voltage
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• The BAV20WQ and BAV21WQ are suitable for automotive applications requiring specific change control;
Mechanical Data
• Case: SOD123
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe)
• Polarity: Cathode Band
• Type Code: BAV19W: A8 or T2 or T3 BAV20W: T2 or T3 BAV21W: T3
• Weight: 0.01 grams (Approximate)
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Diode Type
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
150 V
|
|
Current - Average Rectified (Io)
|
200mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.25 V @ 200 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
50 ns
|
|
Current - Reverse Leakage @ Vr
|
100 nA @ 150 V
|
|
Capacitance @ Vr, F
|
5pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOD-123
|
|
Supplier Device Package
|
SOD-123
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
