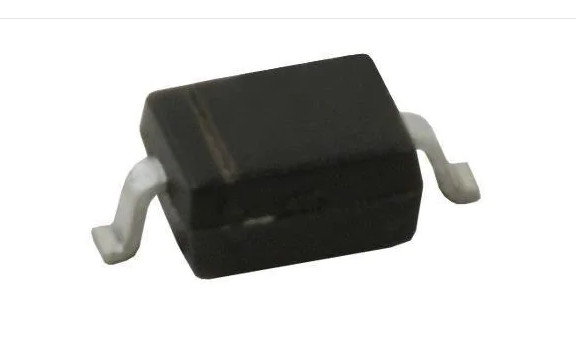

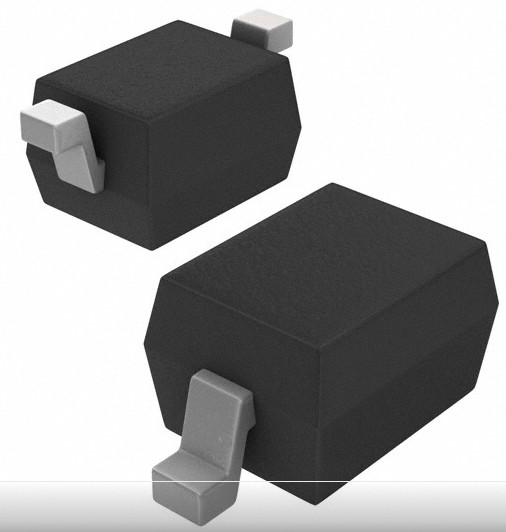

SD103AWS-7-F Diode Schottky 40 V 350mA Surface Mount SOD-323
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | SD103AWS-7-F |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 60000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | SD103AWS-7-F | Diode Type | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 40 V | Current - Average Rectified (Io) | 350mA |
| Voltage - Forward (Vf) (Max) If | 600 MV 200 MA | Package / Case | SC-76, SOD-323 |
Product Description
SD103AWS-7-F Diode Schottky 40 V 350mA Surface Mount SOD-323
This Schottky barrier device has been designed to meet the stringent requirements of Automotive Applications. The devices are ideally suited to use as:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Features and Benefits
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Low Reverse Capacitance
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
|
Category
|
Discrete Semiconductor Products
Diodes - Rectifiers - Single
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Diode Type
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
40 V
|
|
Current - Average Rectified (Io)
|
350mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
600 mV @ 200 mA
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
10 ns
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 30 V
|
|
Capacitance @ Vr, F
|
28pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-76, SOD-323
|
|
Supplier Device Package
|
SOD-323
|
|
Operating Temperature - Junction
|
-65°C ~ 125°C
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
