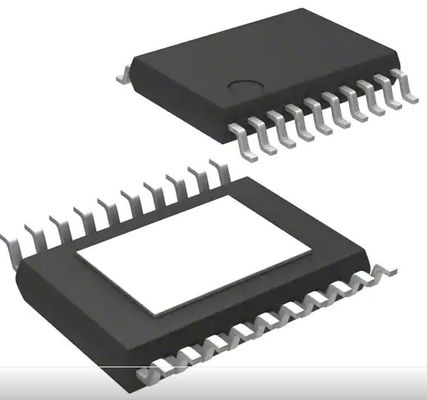

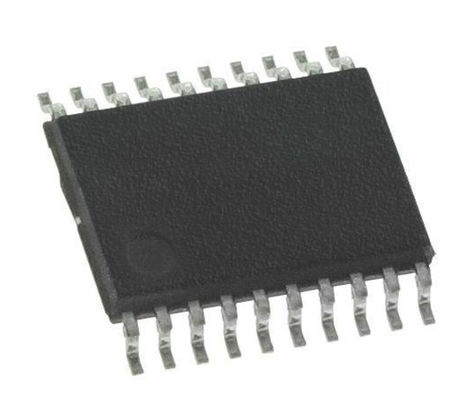

EL7583IREZ-T7 Converter TFT LCD Voltage Regulator IC 2 Output 20-HTSSOP
| Place of Origin | USA |
|---|---|
| Brand Name | Renesas Electronics America Inc |
| Certification | RoHS |
| Model Number | EL7583IREZ-T7 |
| Minimum Order Quantity | 1000 |
| Price | negotiate |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 8000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | EL7583IREZ-T7 | Applications | Converter, TFT LCD |
|---|---|---|---|
| Voltage - Input | 2.7V ~ 14V | Number Of Outputs | 2 |
| Voltage - Output | 5V ~ 17V | Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
Product Description
EL7583IREZ-T7 Converter TFT LCD Voltage Regulator IC 2 Output 20-HTSSOP
The EL7583 is a 3-channel DC/DC converter IC which is designed primarily for use in TFT-LCD applications. It features a PWM boost converter with 2.7V to 14V input capability and 5V to 17V output, which powers the column drivers and provides up to 470mA @ 12V, 370mA @ 15V from 5V supply. A pair of charge pump control circuits provide regulated outputs of VON and VOFF supplies at 8V to 40V and -5V to -40V, respectively, each at up to 60mA. The EL7583 features adjustable switching frequency, adjustable soft start, and a separate output VON enable control to allow selection of supply start-up sequence. An over-temperature feature is provided to allow the IC to be automatically protected from excessive power dissipation. The EL7583 is available in a standard 20 Ld TSSOP package and the Pb-free 20 Ld HTSSOP package. Both are specified for operation over the full -40°C to +85°C temperature range.
Features
• TFT-LCD display supply
- Boost regulator
- VON charge pump
- VOFF charge pump
• 2.7V to 14V VIN supply
• 5V < VBOOST < 17V
• 5V < VON < 40V
• -40V < VOFF < 0V
• VBOOST = 12V @ 470mA
• VBOOST = 15V @ 370mA
• High frequency, small inductor DC/DC boost circuit
• Over 90% efficient DC/DC boost converter capability
• Adjustable frequency
• Adjustable soft-start
• Adjustable outputs
• Small parts count
• Pb-free plus anneal available (RoHS compliant)
Applications
• TFT-LCD panels
• PDAs
Functional Block Diagram
specification of EL7583IREZ-T7
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Special Purpose Regulators
|
|
Mfr
|
Renesas Electronics America Inc
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Applications
|
Converter, TFT LCD
|
|
Voltage - Input
|
2.7V ~ 14V
|
|
Number of Outputs
|
2
|
|
Voltage - Output
|
5V ~ 17V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-TSSOP (0.173", 4.40mm Width) Exposed Pad
|
|
Supplier Device Package
|
20-HTSSOP
|
