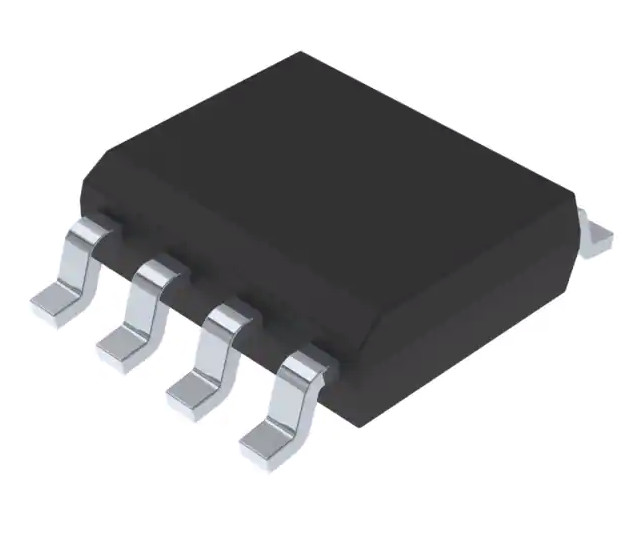

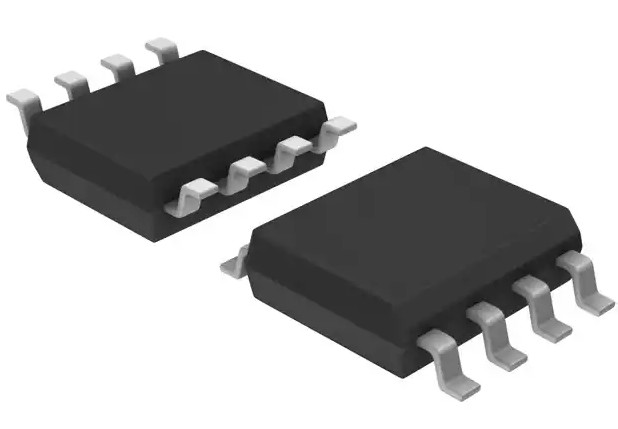

LM358DT Integrated Circuit Chip General Purpose Operational Amplifier 2 Circuit 8-SOIC

LM358DT General Purpose Amplifier 2 Circuit 8-SOIC

Description

These circuits consist of two independent, highgain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard 5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply.

In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.

Features

 Frequency compensation implemented internally

 Large DC voltage gain: 100 dB

 Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)

 Very low supply current per channel essentially independent of supply voltage

 Low input bias current: 20 nA (temperature compensated)

 Low input offset voltage: 2 mV

 Low input offset current: 2 nA

 Input common-mode voltage range includes negative rails

 Differential input voltage range equal to the power supply voltage

 Large output voltage swing 0 V to (VCC+ - 1.5 V)

Specification of LM358DT

ORIGINAL

Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.

PRICE

We provide a variety of quotation channels, and sign the order contract after negotiation.

TRANSACTION

After communication and agreement, we will guide you to arrange payment.

DELIVERY CYCLE

Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.

TRANSPORT

We will choose the appropriate transportation mode according to your country.

PACKAGING

After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
