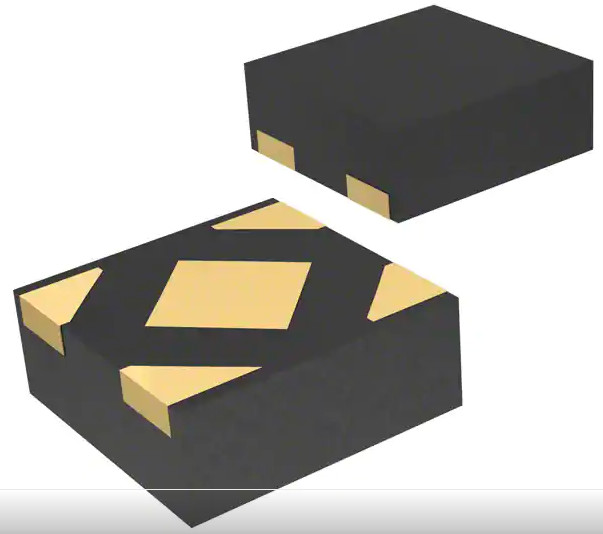

4-X2SON TLV70718PDQNR Linear Regulator IC Positive Fixed 1 Output 200mA
| Place of Origin | USA |
|---|---|
| Brand Name | Texas Instruments |
| Certification | RoHS |
| Model Number | TLV70718PDQNR |
| Minimum Order Quantity | 3000 |
| Price | negotiate |
| Packaging Details | Reel |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 120000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | TLV70718PDQNR | Voltage - Output (Min/Fixed) | 1.8V |
|---|---|---|---|
| Current - Output | 200mA | Current - Quiescent (Iq) | 50 µA |
| Voltage - Input (Max) | 5.5V | Package / Case | 4-XDFN Exposed Pad |
| High Light | 4-X2SON TLV70718PDQNR,TLV70718PDQNR Linear Regulator IC,Linear Regulator IC Positive Fixed 200mA |
||
Product Description
TLV70718PDQNR Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-X2SON
Description
The TLV707 series (TLV707 and TLV707P) of lowdropout linear regulators (LDOs) are low quiescent current devices with excellent line and load transient performance for power-sensitive applications. These devices provide a typical accuracy of 0.5%. All versions have thermal shutdown and overcurrent protection for safety.
Furthermore, these devices are stable with an effective output capacitance of only 0.1 µF. This feature enables the use of cost-effective capacitors that have higher bias voltages and temperature derating. These devices also regulate to the specified accuracy with no output load.
The TLV707P also provides an active pulldown circuit to quickly discharge the outputs.
The TLV707 series of LDOs are available in a 1-mm × 1-mm DQN (X2SON) package that makes them desirable for handheld applications.
Features
• 0.5% Typical Accuracy
• Supports 200-mA Output
• Low IQ: 25 μA
• Fixed-Output Voltage Combinations Possible from 0.85 V to 5.0 V
• High PSRR: – 70 dB at 100 Hz – 50 dB at 1 MHz • Stable With Effective Capacitance of 0.1 μF
• Thermal Shutdown and Overcurrent Protection
• Package: 1-mm × 1-mm DQN (X2SON)
Applications
• Smart Phones and Wireless Handsets
• Gaming and Toys
• WLAN and Other PC Add-On Cards
• TVs and Set-Top Boxes
• Wearable Electronics
Specification of TLV70718PDQNR
| Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear |
Mfr | Texas Instruments |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 5.5V |
Voltage - Output (Min/Fixed) | 1.8V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.36V @ 150mA |
Current - Output | 200mA |
Current - Quiescent (Iq) | 50 µA |
PSRR | 70dB ~ 50dB (100Hz ~ 1MHz) |
Control Features | Enable |
Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 4-XDFN Exposed Pad |
Supplier Device Package | 4-X2SON (1x1) |
