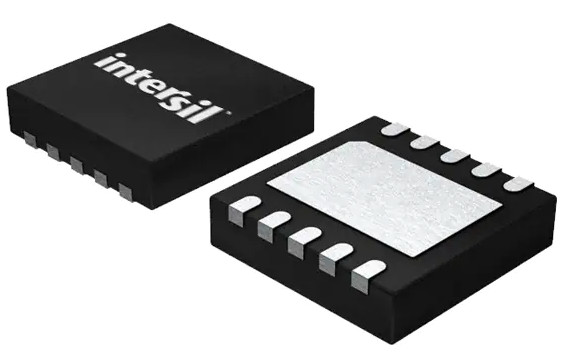

ISL97701IRZ-T7 Integrated Circuit Chip Boost Switching Regulator Positive Adjustable 4.3V
| Place of Origin | USA |
|---|---|
| Brand Name | Renesas Electronics America Inc |
| Certification | RoHS |
| Model Number | ISL97701IRZ-T7 |
| Minimum Order Quantity | 1000 |
| Price | negotiate |
| Packaging Details | Reel |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 33000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ISL97701IRZ-T7 | Voltage - Input (Max) | 5.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed) | 4.3V | Voltage - Output (Max) | 28V |
| Voltage - Input (Min) | 2.3V | Package / Case | 10-VFDFN Exposed Pad |
| High Light | ISL97701IRZ-T7 Integrated Circuit Chip,Integrated Circuit Chip Positive Adjustable 4.3V,ISL97701IRZ-T7 Boost Switching Regulator |
||
Product Description
ISL97701IRZ-T7 Boost Switching Regulator IC Positive Adjustable 4.3V 1 Output 1.2A
The ISL97701 represents a high efficiency boost converter with integrated boost FET, boost diode and input disconnect FET.
With an input voltage of 2.3V to 5.5V the ISL97701 has an output capability of up to 50mA at 18V using integrated 500mA switches. Efficiencies are up to 87%. The integrated protection FET is used to disconnect the boost inductor from the input supply whenever an output fault condition is detected, or when the device is disabled. This gives 0 output current in the disabled mode, compared to standard boost converters where current can still flow when the device is disabled.
The ISL97701 comes in the 10 Ld 3x3 DFN package and is specified for operation over the -40°C to +85°C temperature range.
Features
• Up to 87% efficiency
• 2.3V to 5.5V input
• Up to 28V output
• 50mA at 18V
• Integrated boost Schottky diode
• Input voltage disconnect switch
• Synchronization input
• Chip enable
• 10 Ld 3x3 DFN package
• Pb-free (RoHS compliant)
Applications
• OLED display power
• LED display power
• Adjustable power supplies
Pinout
Typical Application Diagram
Specification of ISL97701IRZ-T7
| Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
|
Mfr
|
Renesas Electronics America Inc
|
|
Function
|
Step-Up
|
|
Output Configuration
|
Positive
|
|
Topology
|
Boost
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.3V
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output (Min/Fixed)
|
4.3V
|
|
Voltage - Output (Max)
|
28V
|
|
Current - Output
|
1.2A (Switch)
|
|
Frequency - Switching
|
1MHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-VFDFN Exposed Pad
|
|
Supplier Device Package
|
10-DFN (3x3)
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
