ISL3152EIBZ-T 1/1 Transceiver Half RS422 RS485 8-SOIC 4.5V ~ 5.5V 20 MV

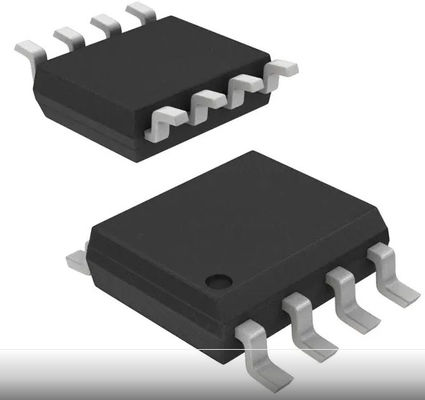

ISL3152EIBZ-T 1/1 Transceiver Half RS422 RS485 8-SOIC

The ISL315xE (ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, and ISL3158E) family of 5V powered RS-485/RS-422 transceivers features high output drive and high ESD protection. The devices withstand ±16.5kV IEC61000-4-2 ESD strikes without latch-up. The large output voltage of 3.1V typical into a 54Ω load provides high noise immunity, and enables the drive of up to 8000ft long bus segments, or eight 120Ω terminations in a star topology.

These devices possess less than 125µA bus input currents, thus constituting a true 1/8 unit load. The high output drive combined with the low bus input currents allows for connecting up to 512 transceivers on the same bus.

The receiver inputs feature a full fail-safe design that turns the receiver outputs high when the bus inputs are open or shorted.

The ISL315xE family includes half and full-duplex transceivers with active-high driver-enable pins and active-low receiver enable pins. These transceivers support data rates of 115kbps, 1Mbps, and 20Mbps. Their performance is characterized from -40°C to +85°C.

Features

• High VOD: 3.1V (Typ) into RD = 54Ω

• Low bus currents: 125µA constitutes a true 1/8 unit load

• Allows for up to 512 transceivers on the bus

• ±16.5kV ESD protection on bus I/O pins

• High transient overvoltage tolerance of ±100V

• Full fail-safe outputs for open or shorted inputs

• Hot plug capability - driver and receiver outputs remain high-impedance during power-up and power-down

• Supported data rates: 115kbps, 1Mbps, 20Mbps

• Low supply current (driver disabled): 550µA

• Ultra-low shutdown current: 70nA

Applications

• Automated utility e-meter reading systems

• High node count systems

• PROFIBUS and Fieldbus systems in factory automation

• Security camera networks

• Lighting, elevator, and HVAC control systems in building automation

• Industrial process control networks

• Networks with star topology

• Long-haul networks in coal mines and oil rigs
