ISL8117AFRZ-T Buck Controller Ic 16-QFN Step Down Controller IC

  • ISL8117AFRZ-T Buck Controller Ic 16-QFN Step Down Controller IC
  • ISL8117AFRZ-T Buck Controller Ic 16-QFN Step Down Controller IC
Place of Origin USA
Brand Name Renesas Electronics America Inc
Certification RoHS
Model Number ISL8117AFRZ-T
Minimum Order Quantity 6000
Price negotiations
Packaging Details Reel
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 30000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ISL8117AFRZ-T Frequency - Switching 100kHz ~ 2MHz
Voltage - Supply (Vcc/Vdd) 4.5V ~ 60V Output Type Transistor Driver
Function Step-Down Control Features Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking
Package / Case 16-TFQFN Exposed Pad
High Light

ISL8117AFRZ-T Buck Controller Ic

,

Buck Controller Ic 16-QFN

,

16-QFN Step Down Controller IC
Leave a Message
Product Description

ISL8117AFRZ-T Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-QFN

Description

The ISL8117 is a 60V high voltage synchronous buck controller that offers external soft-start, independent enable functions and integrates UV/OV/OC/OT protection. Its current mode control architecture and internal compensation network keep peripheral component count minimal. Programmable switching frequency ranging from 100kHz to 2MHz helps to optimize inductor size while the strong gate driver delivers up to 30A for the buck output.



Specifications

The ISL8117DEMO1Z demonstration board is designed for high current applications. The current rating of the ISL8117DEMO1Z is limited by the FETs and inductor selected. The electrical ratings of ISL8117DEMO1Z are shown in Table 1.

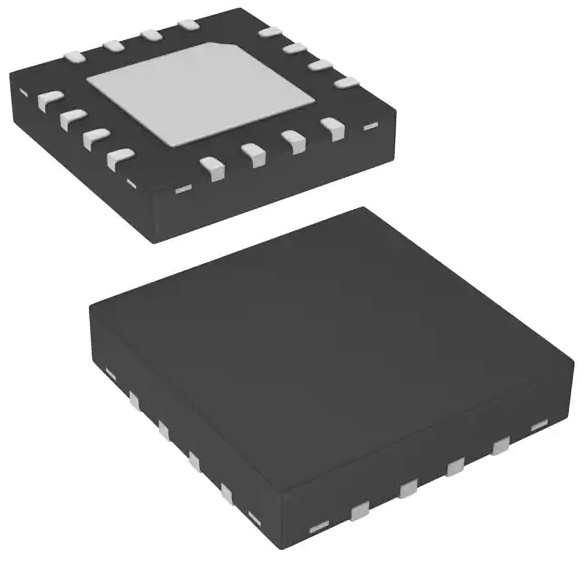

ISL8117AFRZ-T Buck Controller Ic 16-QFN Step Down Controller IC 0



Key Features

• Small, compact design

• Wide input range: 4.5V to 60V

• High light-load efficiency in pulse skipping DEM operation

• Programmable soft-start

• Optional DEM/CCM operation

• Supports prebias output with SR soft-start

• External frequency sync

• PGOOD indicator

• OCP, OVP, OTP, UVP protection



Specification of ISL8117AFRZ-T

Category

Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
Mfr
Renesas Electronics America Inc
Product Status
Active
Output Type
Transistor Driver
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Number of Outputs
1
Output Phases
1
Voltage - Supply (Vcc/Vdd)
4.5V ~ 60V
Frequency - Switching
100kHz ~ 2MHz
Synchronous Rectifier
Yes
Clock Sync
Yes
Control Features
Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-TFQFN Exposed Pad
Supplier Device Package
16-QFN (4x4)



ORIGINAL



Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
