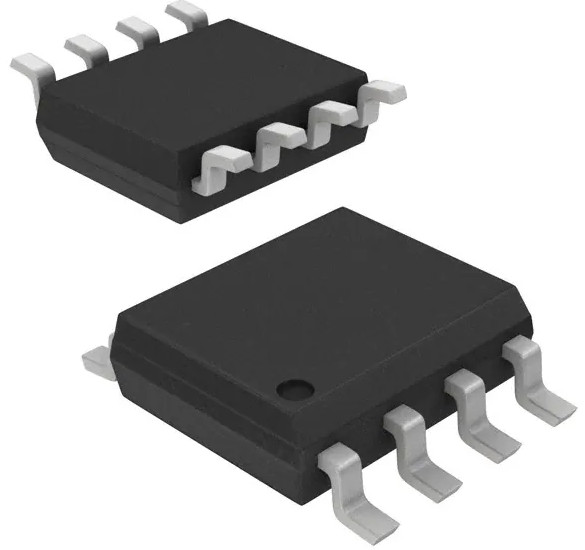

ISL6843IBZ-T Integrated Circuit Chip 2MHz Flyback Buck Boost Converter
| Place of Origin | USA |
|---|---|
| Brand Name | Renesas Electronics America Inc |
| Certification | RoHS |
| Model Number | ISL6843IBZ-T |
| Minimum Order Quantity | 2500 |
| Price | negotiations |
| Packaging Details | Reel |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 2500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ISL6843IBZ-T | Output Configuration | Positive, Isolation Capable |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V | Frequency - Switching | Up To 2MHz |
| Function | Step-Up, Step-Up/Step-Down | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| High Light | ISL6843IBZ-T Integrated Circuit Chip,Integrated Circuit Chip 2MHz,ISL6843IBZ-T Flyback Buck Boost Converter |
||
Product Description
ISL6843IBZ-T Boost Flyback Regulator Positive Isolation Capable Output Step-Up DC-DC Controller IC
The ISL6840, ISL6841, ISL6842, ISL6843, and ISL6844 (ISL684x) family of adjustable frequency, low power, Pulse-Width Modulating (PWM) current mode controllers is designed for a wide range of power conversion applications including boost, flyback, and isolated output configurations. Peak current mode control effectively handles power transients and provides inherent overcurrent protection.
This advanced BiCMOS design is pin-compatible with the industry standard 384x family of controllers and offers significantly improved performance. Features include low operating current, 60µA start-up current, adjustable operating frequency to 2MHz, and high peak current drive capability with 20ns rise and fall times.
Features
• 1A MOSFET gate driver
• 60µA start-up current, 100µA maximum
• 25ns propagation delay current sense to output
• Fast transient response with peak current mode control
• Adjustable switching frequency to 2MHz
• 20ns rise and fall times with 1nF output load
• Trimmed timing capacitor discharge current for accurate deadtime/maximum duty cycle control
• High bandwidth error amplifier
• Tight tolerance voltage reference over line, load, and temperature
• Tight tolerance current limit threshold
• Pb-free available (RoHS compliant)
Applications
• Telecom and datacom power
• Wireless base station power
• File server power
• Industrial power systems
• PC power supplies
• Isolated buck and flyback regulators
• Boost regulators
Specification of ISL6843IBZ-T
|
Mfr
|
Renesas Electronics America Inc
|
|
Output Type
|
Transistor Driver
|
|
Function
|
Step-Up, Step-Up/Step-Down
|
|
Output Configuration
|
Positive, Isolation Capable
|
|
Topology
|
Boost, Flyback
|
|
Number of Outputs
|
1
|
|
Output Phases
|
1
|
|
Voltage - Supply (Vcc/Vdd)
|
9V ~ 16V
|
|
Frequency - Switching
|
Up to 2MHz
|
|
Duty Cycle (Max)
|
96%
|
|
Synchronous Rectifier
|
Yes
|
|
Clock Sync
|
No
|
|
Control Features
|
Current Limit, Frequency Control
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
