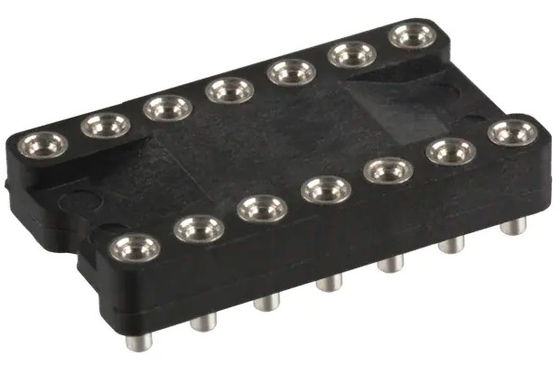

High Voltage DIP Socket with Flexible Row Options for Various Applications

  • High Voltage DIP Socket with Flexible Row Options for Various Applications
Place of Origin USA
Brand Name MOLEX
Certification ROHS
Model Number 2042860001
Minimum Order Quantity 1
Price 0.1
Packaging Details Tape & Reel (TR)
Delivery Time 1-2 WEEKS
Payment Terms T/T
Supply Ability 100000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -55°C To +105°C Termination Method Solder
Current Rating 1A Dielectric Withstanding Voltage 500V AC
Contact Plating Gold Contact Material Phosphor Bronze
Pitch 2.54mm Number Of Contacts 2-64
Leave a Message
Product Description

Product Description:

DIP Connector is a high-quality electronic component widely used in the electronic industry. It has excellent electrical performance and offers superior reliability even in harsh environments. It is made of premium phosphor bronze material, with gold plating and 500V AC dielectric withstanding voltage, plus a polyester insulator material. Therefore, DIP Connector is ideal for a wide range of applications, from industrial to consumer electronics.

DIP Connector is designed for through hole mounting and provides secure connections with maximum reliability. Its high-performance contact material enables an efficient and reliable data transmission. Moreover, its superior quality and robust design make it a perfect solution for any electronic system.

Therefore, DIP Connector is an ideal choice for customers who need high-quality and reliable electronic components, which can be used in different kinds of applications. It is the perfect choice for those who need quality and reliability in their electronic systems.


Features:

  • Product Name: DIP Connector
  • Pitch: 2.54mm
  • Number of Contacts: 2-64
  • Contact Material: Phosphor Bronze
  • Insulation Resistance: 1000MΩ Min
  • Termination Method: Solder

Technical Parameters:

Technical Parameter Value
Termination Method Solder
Dielectric Withstanding Voltage 500V AC
Connector Type DIP
Mounting Type Through Hole
Voltage Rating 250V
Contact Material Phosphor Bronze
Insulation Resistance 1000MΩ Min
Number of Rows 1-4
Insulator Material Polyester
Number of Contacts 2-64

Applications:

MOLEX 2042860001 DIP Connectors are designed for reliable and electrical performance in a variety of industry applications. The industry-standard connectors boast a UL 94V-0 shell and are insulated for reliable and durable performance. The connectors are compliant with RoHS standards and feature a wide range of contact, female and male rated terminals. The terminals are rated for 1A of current and have a contact resistance of 20mΩ Max and insulation resistance of 1000MΩ Min. The connectors are suitable for power and signal applications in a wide range of equipment and can handle temperatures ranging from -55°C to +105°C. The connectors are manufactured to the highest quality standards for reliable performance and are designed for easy and reliable cable assembly. The connectors are perfect for industrial manufacturing and a range of other applications that require reliable and compliant connectors. MOLEX 2042860001 DIP Connectors provide industry and equipment manufacturers with reliable and durable products that meet their requirements for power and signal applications.


Packing and Shipping:

Packaging and Shipping the DIP Connector:

The DIP Connector will be packaged in a cardboard box, with a cardboard insert to ensure that the product is secure during transit. The box will be labeled with the product name and part number. The box should be sealed with clear tape. The packaging should be strong enough to withstand the rigors of shipping.

The DIP Connector should be shipped with a reputable carrier. The shipment should be insured, and tracking should be provided. Once the product is received, the customer should inspect the shipment for any damage, and contact the carrier if any damage is found.


FAQ:

Q1: What is MOLEX DIP Connector?
A1: MOLEX DIP Connector (Model Number: 2042860001) is a high-performance two-piece connector with a reliable and secure connection. It is compliant with ROHS certification and made in USA.

Q2: What is the minimum order quantity?
A2: The minimum order quantity for MOLEX DIP Connector is 1.

Q3: What is the price of MOLEX DIP Connector?
A3: The price of MOLEX DIP Connector is US $0.1.

Q4: How is MOLEX DIP Connector packaged?
A4: MOLEX DIP Connector is packaged in Tape & Reel (TR).

Q5: What is the delivery time?
A5: The delivery time for MOLEX DIP Connector is 1-2 weeks.
