16-600-11 16 Pin Ic Socket DIP DIL Connector Fork Gold Plating 0.100" 0.300"
| Place of Origin | USA |
|---|---|
| Brand Name | Aries Electronics |
| Certification | RoHS |
| Model Number | 16-600-11 |
| Minimum Order Quantity | 1 |
| Price | negotiated |
| Packaging Details | Bagged |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 16-600-11 | Number Of Stitches | 16 |
|---|---|---|---|
| Spacing | 0.100"（2.54mm） | Row Number | 2 |
| Row Spacing | 0.300"（7.62mm） | Contact Type | Forked |
| Product Status | Active | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Applications | Automotive |
| High Light | 16-600-11 16 Pin Ic Socket,16 Pin Ic Socket Fork Gold Plating,16-600-11 DIL Connector |
||
Product Description
16-600-11 16 Position DIP DIL - Connector Fork Gold Plating 0.100" (2.54mm)0.300"(7.62mm)

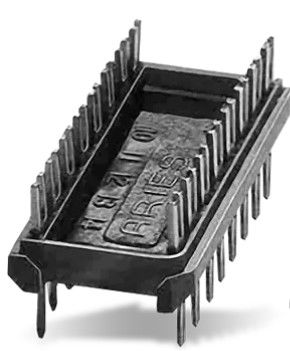

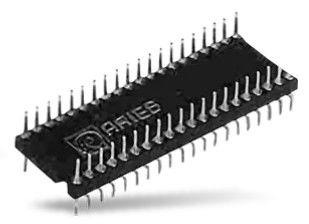

Aries Electronics Series 600 DIP Headers with Coined Contacts
Aries Series 600 DIP Fork Headers with coined contacts feature body cavities that provide additional clearance for component mounting. Snap-on protective covers are marked with pin positions and polarization notch identifying Pin 1.
FEATURES
-
Full line of DIP headers with coined contacts
-
Snap-on protective covers are available for all sizes shown below and accommodate 3.18mm to 9.05mm component heights
-
Body cavity design provides additional clearance for component mounting
SPECIFICATIONS
-
Operating temperature range
-
-55°C to +105°C for Sn and Sn/Pb plating
-
-55°C to +125°C for Au plating
-
-
2A contact current rating
-
Forked contacts accept leads up to 0.64mm diameter
specification of 16-600-11
|
manufacturer
|
Aries Electronics
|
|
series
|
600
|
|
Connector type
|
DIP,DIL - Connector
|
|
Contact type
|
Forked
|
|
Number of stitches
|
16
|
|
spacing
|
0.100"(2.54mm)
|
|
Row number
|
2
|
|
Row spacing
|
0.300"(7.62mm)
|
|
Installation type
|
Through-hole
|
|
Termination
|
welding
|
|
Contact surface treatment
|
gold-plated
|
|
Contact surface treatment thickness
|
10.0µin(0.25µm)
|
|
colour
|
black
|
