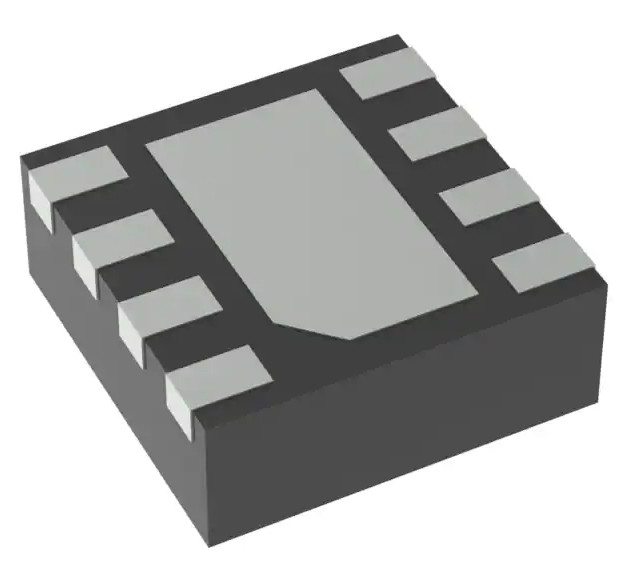

TPS22965DSGR Integrated Circuit IC Power Driver IC N Channel 6A 8-WSON

  • TPS22965DSGR Integrated Circuit IC Power Driver IC N Channel 6A 8-WSON
  • TPS22965DSGR Integrated Circuit IC Power Driver IC N Channel 6A 8-WSON
Place of Origin USA
Brand Name Texas Instruments
Certification RoHS
Model Number TPS22965DSGR
Minimum Order Quantity 3000
Price negotiation
Packaging Details Tape Reel (TR)
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 15000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model TPS22965DSGR Ratio - InputOutput 1:1
Output Type N-Channel Voltage - Load 2.5V ~ 5.7V
Current - Output (Max) 6A Rds On (Typ) 16mOhm
High Light

TPS22965DSGR Integrated Circuit IC

,

Integrated Circuit IC 6A 8-WSON

,

TPS22965DSGR Power Driver IC
Leave a Message
Product Description

TPS22965DSGR Power Switch/Driver 1:1 N-Channel 6A 8-WSON (2x2)

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.



Features

• Integrated Single Channel Load Switch

• Input Voltage Range: 0.8 V to 5.7 V

• Ultra-Low On Resistance (RON) – RON = 16 mΩ at VIN = 5 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)

• 6-A Maximum Continuous Switch Current

• Low Quiescent Current (50 µA)

• Low Control Input Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic

• Configurable Rise Time

• Quick Output Discharge (QOD) (Optional)

• SON 8-pin Package With Thermal Pad

• ESD Performance Tested per JESD 22 – 2000-V HBM and 1000-V CDM



Applications

• Ultrabook™

• Notebooks and Netbooks

• Tablet PC

• Consumer Electronics

• Set-top Boxes and Residential Gateways

• Telecom Systems

• Solid State Drives (SSDs)



Category
Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
Mfr
Texas Instruments
Series
-
Product Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
2.5V ~ 5.7V
Voltage - Supply (Vcc/Vdd)
0.8V ~ 5.7V
Current - Output (Max)
6A
Rds On (Typ)
16mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Fault Protection
-
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
8-WSON (2x2)
Package / Case
8-WFDFN Exposed Pad
