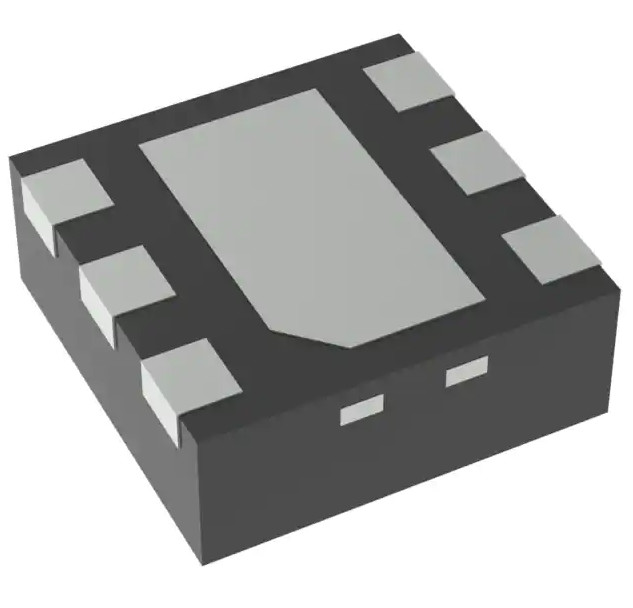

TMP116AIDRVR Integrated Circuit IC 6-WSON Temperature Sensor Digital Local

TMP116AIDRVR Temperature Sensor Digital, Local -55°C ~ 125°C 16 B 6-WSON (2x2)

Features

• TMP116 accuracy without calibration:

– ±0.2°C (maximum) from –10°C to +85°C

– ±0.25°C (maximum) from –40°C to +105°C

– ±0.3°C (maximum) from +105°C to +125°C

• TMP116N accuracy, no calibration needed:

– ±0.3°C (maximum) from –25°C to +85°C

– ±0.4°C (maximum) from –40°C to +125°C

• Low Quiescent Current:

– 3.5-μA, 1-Hz conversion cycle

– 250-nA shutdown current

• Supply range: 1.9 V to 5.5 V

• Resolution: 16 bits at 0.0078°C (1 LSB)

• Programmable temperature alert limits

• Selectable averaging

• General-purpose EEPROM: 64 bits

• NIST traceability

• SMBus™, I 2C interface compatibility

Applications

• Medical grade: meets ASTM and ISO spec

• Environmental monitoring and thermostats

• Wearables

• Asset tracking and cold chain

• Gas meters and heat meters

• Test and measurement

• RTDs replacement: PT100, PT500, PT1000

• Cold-junction compensation of thermocouples SPACER

Description

The TMP116 family (TMP116, TMP116N) consist of low-power, high-precision temperature sensors with integrated EEPROM memory. The TMP116 provides a 16-bit temperature result with a resolution of 0.0078°C and an accuracy of up to ±0.2°C with no calibration. The TMP116 is compatible with the I 2Cand SMBus interface, has programmable alert functionality, and supports up to four devices on a single bus. The TMP116 consumes minimal current that, in addition to providing power savings, minimizes selfheating and improves measurement accuracy. The TMP116 operates from 1.9 V to 5.5 V and typically consumes 3.5 µA. Across the device operating temperature range of –55°C to +125°C, the TMP116 exceeds the accuracy of a class A RTD, while consuming less than one fifth of the typical excitation current for a PT100 RTD. The TMP116 is easier to use than RTDs, eliminating the need for calibration, external circuitry, matched traces, and Kelvin connections. The TMP116 units are 100% tested on a production setup that is NIST traceable and verified with equipment that is calibrated to ISO/IEC 17025 accredited standards.
