11 B 8-SO LM75BD 118 RoHS Digital Temperature Sensor Local
| Place of Origin | USA |
|---|---|
| Brand Name | NXP USA Inc. |
| Certification | RoHS |
| Model Number | LM75BD,118 |
| Minimum Order Quantity | 2500 |
| Price | negotiation |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 40000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | LM75BD,118 | Voltage - Supply | 2.8V ~ 5.5V |
|---|---|---|---|
| Sensing Temperature - Local | -55°C ~ 125°C | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| High Light | 11 B 8-SO LM75BD 118,LM75BD 118 RoHS,RoHS Digital Temperature Sensor Local |
||
Product Description

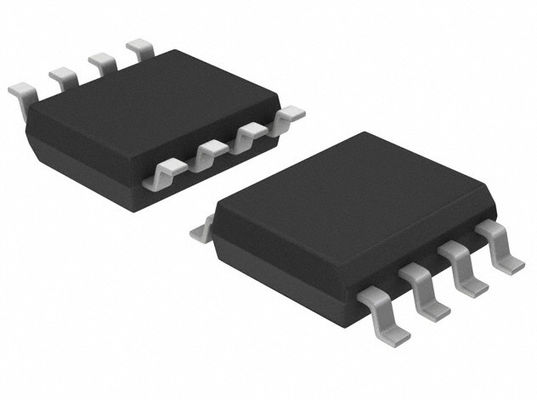

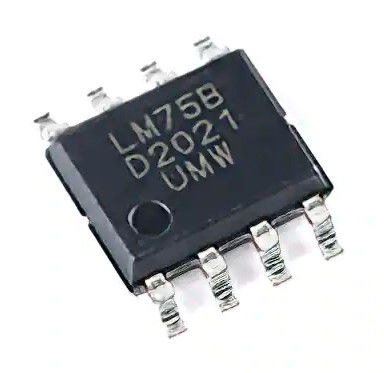

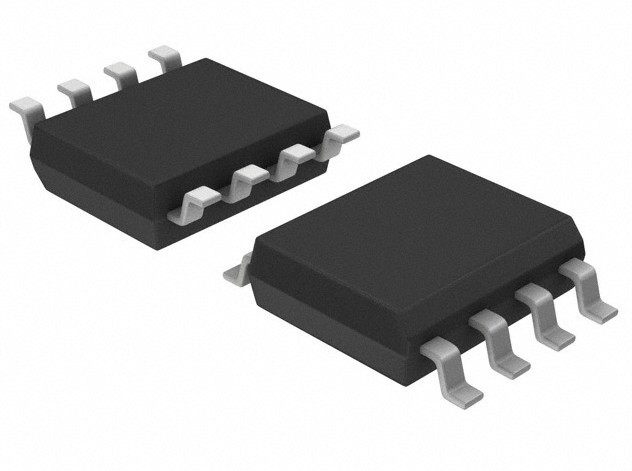

LM75BD,118 Temperature Sensor Digital, Local -55°C ~ 125°C 11 B 8-SO
The LM75B is a temperature-to-digital converter using an on-chip band gap temperature sensor and Sigma-Delta A-to-D conversion technique with an overtemperature detection output.
Features and benefits
Pin-for-pin replacement for industry standard LM75 and LM75A and offers improved temperature resolution of 0.125 C and specification of a single part over power supply range from 2.8 V to 5.5 V
I 2C-bus interface with up to 8 devices on the same bus
Power supply range from 2.8 V to 5.5 V
Temperatures range from -55 C to +125 C
Frequency range 20 Hz to 400 kHz with bus fault time-out to prevent hanging up the bus 11-bit ADC that offers a temperature resolution of 0.125 C
Temperature accuracy of: ±0.5 C from C to +50 C
±1 C from 25 C to +100 C
±1.5 C from 55 C to +125 C
Programmable temperature threshold and hysteresis set points
Supply current of 1.0 A in shutdown mode for power conservation
Stand-alone operation as thermostat at power-up
ESD protection exceeds 4000 V HBM per JESD22-A114 and 2000 V CDM per JESD22-C101
Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
|
Category
|
Sensors, Transducers
Temperature Sensors - Analog and Digital Output
|
|
Mfr
|
NXP USA Inc.
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Sensor Type
|
Digital, Local
|
|
Sensing Temperature - Local
|
-55°C ~ 125°C
|
|
Sensing Temperature - Remote
|
-
|
|
Output Type
|
I²C
|
|
Voltage - Supply
|
2.8V ~ 5.5V
|
|
Resolution
|
11 b
|
|
Features
|
Output Switch, Programmable Limit
|
|
Accuracy - Highest (Lowest)
|
±2°C (±3°C)
|
|
Test Condition
|
-25°C ~ 100°C (-55°C ~ 125°C)
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
