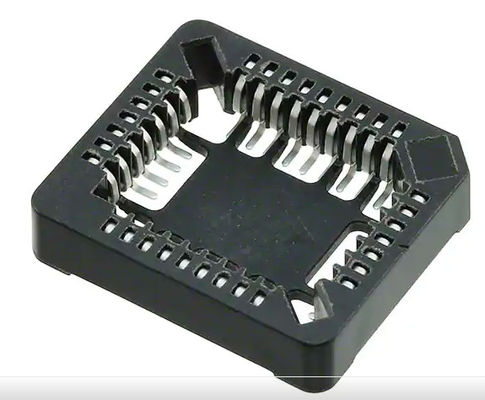

A-CCS 032-Z-SM DIP Connector 32 Pin PLCC Socket Tin Surface Mount
| Place of Origin | USA |
|---|---|
| Brand Name | Assmann WSW Components |
| Certification | RoHS |
| Model Number | A-CCS 032-Z-SM |
| Minimum Order Quantity | 1000 |
| Price | negotiate |
| Packaging Details | Tube |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Closed Frame | Model | A-CCS 032-Z-SM |
|---|---|---|---|
| Number Of Positions Or Pins (Grid) | 32 (2 X 7, 2 X 9) | Mounting Type | Surface Mount |
| Product Status | Active | Operating Temperature | -40°C ~ 85°C |
| Applications | Automotive | ||
| High Light | A-CCS 032-Z-SM DIP Connector,DIP Connector 32 Pin PLCC Socket,32 Pin PLCC Socket Tin Surface Mount |
||
Product Description
A-CCS 032-Z-SM 32 (2 X 7, 2 X 9) Pos PLCC Socket Tin Surface Mount
|
Mfr
|
Assmann WSW Components
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Type
|
PLCC
|
|
Number of Positions or Pins (Grid)
|
32 (2 x 7, 2 x 9)
|
|
Pitch - Mating
|
0.050" (1.27mm)
|
|
Contact Finish - Mating
|
Tin
|
|
Contact Finish Thickness - Mating
|
160.0µin (4.06µm)
|
|
Contact Material - Mating
|
Phosphor Bronze
|
|
Mounting Type
|
Surface Mount
|
|
Features
|
Closed Frame
|
|
Termination
|
Solder
|
|
Pitch - Post
|
0.050" (1.27mm)
|
|
Contact Finish - Post
|
Tin
|
|
Contact Finish Thickness - Post
|
160.0µin (4.06µm)
|
|
Contact Material - Post
|
Phosphor Bronze
|
|
Housing Material
|
Polyamide (PA9T), Nylon 9T, Glass Filled
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Termination Post Length
|
-
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Current Rating (Amps)
|
1 A
|
|
Contact Resistance
|
15mOhm
|
