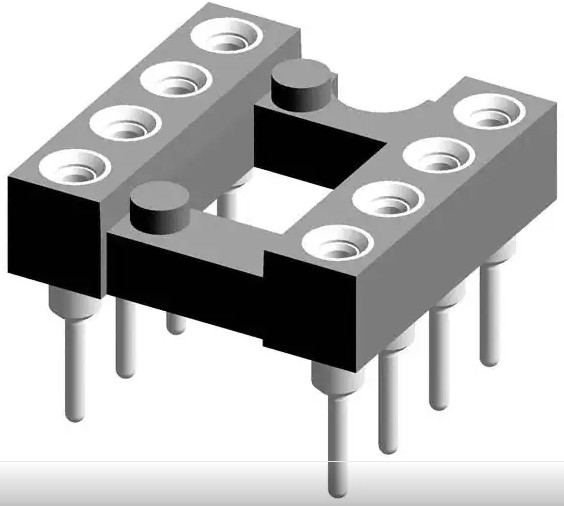

110-87-308-41-001101 RoHS 8 Pin Dip Socket Gold Through Hole
| Place of Origin | USA |
|---|---|
| Brand Name | Preci-Dip |
| Certification | RoHS |
| Model Number | 110-87-308-41-001101 |
| Minimum Order Quantity | 1000 |
| Price | negotiate |
| Packaging Details | Box |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Open Frame | Model | 110-87-308-41-001101 |
|---|---|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing | Number Of Positions Or Pins (Grid) | 8 (2 X 4) |
| Product Status | Active | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Applications | Automotive |
| High Light | 110-87-308-41-001101 RoHS,RoHS 8 Pin Dip Socket,8 Pin Dip Socket Gold Through Hole |
||
Product Description
110-87-308-41-001101 8 (2 X 4) Pos DIP 0.3" Row Spacing Socket Gold Through Hole
|
Mfr
|
Preci-Dip
|
|
Series
|
110
|
|
Product Status
|
Active
|
|
Type
|
DIP, 0.3" (7.62mm) Row Spacing
|
|
Number of Positions or Pins (Grid)
|
8 (2 x 4)
|
|
Pitch - Mating
|
0.100" (2.54mm)
|
|
Contact Finish - Mating
|
Gold
|
|
Contact Finish Thickness - Mating
|
Flash
|
|
Contact Material - Mating
|
Beryllium Copper
|
|
Mounting Type
|
Through Hole
|
|
Features
|
Open Frame
|
|
Termination
|
Solder
|
|
Pitch - Post
|
0.100" (2.54mm)
|
|
Contact Finish - Post
|
Tin
|
|
Contact Finish Thickness - Post
|
-
|
|
Contact Material - Post
|
Brass
|
|
Housing Material
|
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Termination Post Length
|
0.125" (3.18mm)
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Current Rating (Amps)
|
1 A
|
|
Contact Resistance
|
10mOhm
|
