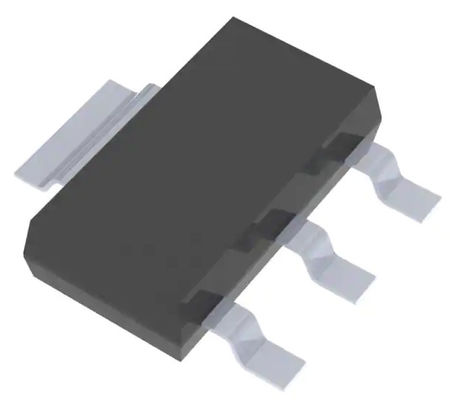

AZ1117EH Pol Module SOT-223 Linear Voltage Regulator IC Positive Fixed 1 Output 1A
| Place of Origin | USA |
|---|---|
| Brand Name | Diodes Incorporated |
| Certification | RoHS |
| Model Number | AZ1117EH-1.8TRG1 |
| Minimum Order Quantity | 1000 |
| Price | negotiations |
| Packaging Details | Tape Reel (TR) |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T |
| Supply Ability | 24000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | AZ1117EH-1.8TRG1 | Protection Features | Thermal Shutdown |
|---|---|---|---|
| Product Status | Active | Memory Type | Non-Volatile |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Surface Mount |
| High Light | AZ1117EH Pol Module,SOT-223 Linear Voltage Regulator IC,Linear Voltage Regulator IC 1A RoHS |
||
Product Description
AZ1117EH-1.8TRG1 Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
AZ1117E
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Fixed
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
13V
|
|
Voltage - Output (Min/Fixed)
|
1.8V
|
|
Voltage - Output (Max)
|
-
|
|
Voltage Dropout (Max)
|
1.3V @ 1A
|
|
Current - Output
|
1A
|
|
Current - Quiescent (Iq)
|
6 mA
|
|
PSRR
|
70dB (120Hz ~ 1kHz)
|
|
Control Features
|
-
|
|
Protection Features
|
Thermal Shutdown
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-261-4, TO-261AA
|
ORIGINAL
Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.
PRICE
We provide a variety of quotation channels, and sign the order contract after negotiation.
TRANSACTION
After communication and agreement, we will guide you to arrange payment.
DELIVERY CYCLE
Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.
TRANSPORT
We will choose the appropriate transportation mode according to your country.
PACKAGING
After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.
